SELECT A DIAGRAM

01 - Cover


02 - Door

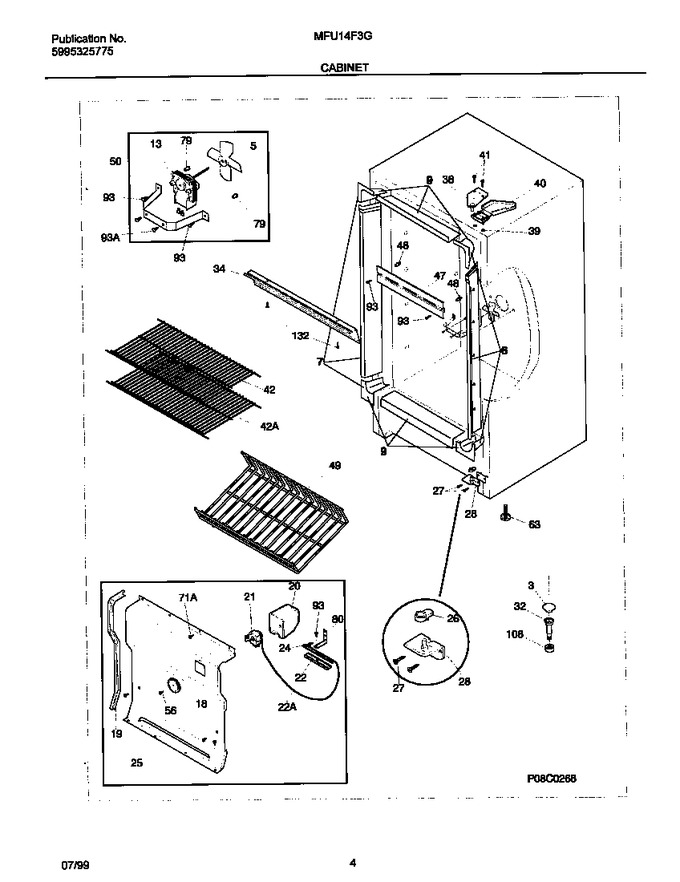

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216604300		Breaker Kit W/corners				$ 163.64
7	216603800		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
13	5304442620		Motor-evap Fan   (Replaces: 216570900)				$ 282.51
18	216591700		Knob-control		Appelez-nous	-
19	216511300		Gasket-evap Cover		Appelez-nous	-
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
24	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
25	216137400		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216557500		Shield-light		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216546200		Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white		Appelez-nous	-
42	216546100		Shelf,16.69 X 23.88 Wh,16.69x23.88 ,white		Appelez-nous	-
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216278800		Trivet		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
93	5303302760		Screw				$ 8.72
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
*22681	09948773		Insulation, Drain Tube				$ 12.60
*22682	216533300		Wire-ground, Fan Motor		Appelez-nous	-
*22683	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*22684	5303311565		Clip-cable				$ 2.10

    View Diagram in Separate Window       Print Part List
