Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5308000110 Strap-evap/heater, Aluminum In-Stock Immediately $ 59.82

4 5303305677 Drier-filter   (Replaces: 216634500) In-Stock Immediately $ 31.67

18 216727600 Insulator-evap,styrofoam Appelez-nous -
19 216727700 Insulator-evap,styrofoam Appelez-nous -
20 297216600 Thermostat-defrost   (Replaces: 216731000) In-Stock Immediately $ 27.52

23 5304518034 Timer-defrost   (Replaces: 216744400) In-Stock Immediately $ 57.55

24 08016580 Bracket Appelez-nous -
27 216498900 Grommet,compressor Special Order $ 13.01

29 5304507765 Compressor Assy   (Replaces: 216557000) In-Stock Immediately $ 677.23

30 216596700 Starter,factory Instal Appelez-nous -
31 216100116 Overload Protector,factory Instal Appelez-nous -
34 5306594529 Sleeve-compressor Special Order $ 10.34

35 5303272328 Screw, Compressor Special Order $ 10.34

43 09950610 Clip Appelez-nous -
53 216347800 Cover, Compressor Appelez-nous -
86 216036600 Screw-ground Appelez-nous -
87 08037849 Screw Special Order $ 8.98

130 216730400 Support-evaporator Appelez-nous -
15A 297348500 Heat Exchanger   (Replaces: 216565700) Special Order $ 112.69

31A 5304428401 Pan-drain,production Compr   (Replaces: 216601800) Special Order $ 284.92

43A 216629700 Clip-harness Appelez-nous -
F1 5300123788 Condenser Special Order $ 635.80

F14 5304496687 Heater-defrost   (Replaces: 216740000) Special Order $ 97.81

F15 297414800 Evaporator   (Replaces: 216737400) Special Order $ 145.30

F5 216766200 Harness,electrical Appelez-nous -
NI 216502500 Sleeve-tube Insert Special Order $ 10.85


    View Diagram in Separate Window     Print Icon   Print Part List

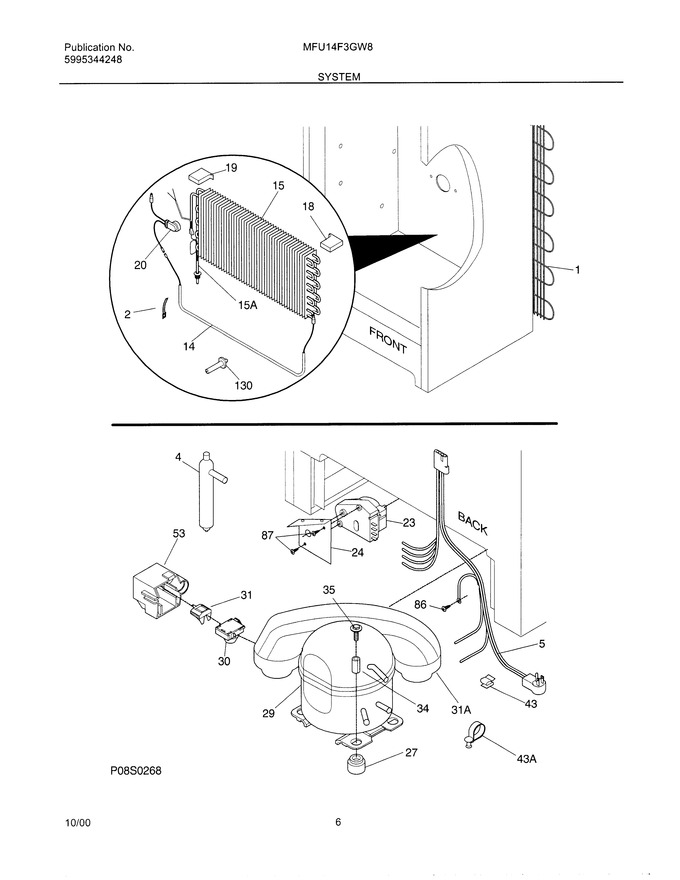

Diagram for MFU14F3GW8
