SELECT A DIAGRAM

01 - Cover


02 - Door

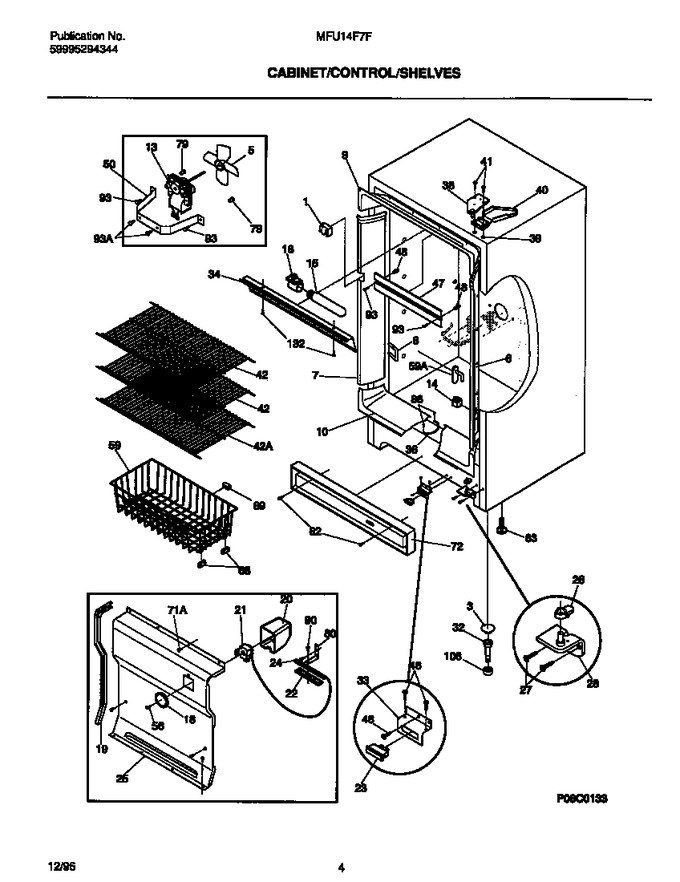

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216013600		Support, Lock		Appelez-nous	-
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216108601		Breaker-hinge Side		Appelez-nous	-
7	216108701		Breaker, Lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
13	5304442620		Motor-evap Fan   (Replaces: 216482400)				$ 282.51
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216008801		Knob-control		Appelez-nous	-
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve (not Illustrated)				$ 60.96
22	05878562		Clamp		Appelez-nous	-
23	06594648		Signal Light, Amber		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216137400		Cover-evaporator		Appelez-nous	-
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
33	216252001		Bracket, Signal Light		Appelez-nous	-
34	216312301		Shield-light		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216266500		Shelf-upper		Appelez-nous	-
42	216266600		Shelf-bottom		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
59	09948791		Stop, Basket		Appelez-nous	-
59	216274400		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
71	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
72	216294306		Grille/kickplate		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
90	5303297123		Screw, Th, 8-32 X 2-1/2		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
93	5303302760		Screw				$ 8.72
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
*89521	06594680		Clip, Breaker		Appelez-nous	-
*89522	09948773		Insulation, Drain Tube				$ 12.60
*89523	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*89524	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
*89525	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
