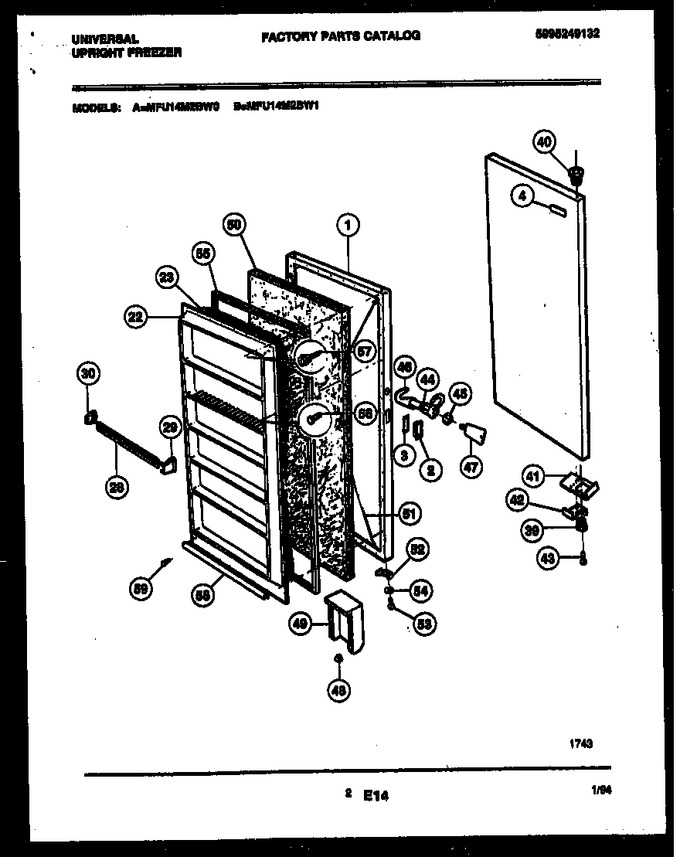

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011402		Panel-door (white)		Appelez-nous	-
2	216140200		Handle Door		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
4	215366301		Frame-nameplate		Appelez-nous	-
22	216048708		Panel-inner-white		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216110600		Shelf Front-narrow (5)		Appelez-nous	-
29	5303925377		End Cap-rh-narrow (5)   (Replaces: 216257600)			Immediately	$ 46.07
30	5303925377		End Cap-lh-narrow (5)   (Replaces: 216257700)			Immediately	$ 46.07
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5303925197		Bearing-top				$ 23.73
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Door Stop				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037953		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206246		Gasket-door				$ 238.51
56	216858001		Screw, Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw-panel (16)		Appelez-nous	-
58	5303300817		Gasket		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63
