Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205519 Motor, Fan Appelez-nous -
2 3205520 Blade, Fan Appelez-nous -
3 09948978 Insert Nut Appelez-nous -
4 08013207 Bracket Special Order $ 12.92

5 216858001 Screw, Bracket   (Replaces: 5303161215) In-Stock Immediately $ 10.85

6 DE81-07046A Screw, Motor To Bracket   (Replaces: 82473) Special Order $ 147.24

7 216230300 Cover, Control Special Order $ 49.88

8 216303500 Control-temperature Appelez-nous -
9 06594651 Wire, Ground Appelez-nous -
10 216241604 Shield, Light Appelez-nous -
11 5303283898 Screw, Shield Appelez-nous -
14 5303288233 Baffle Appelez-nous -
15 216858001 Screw, Baffle   (Replaces: 5303161215) In-Stock Immediately $ 10.85

16 08000456 Spacer, Baffle Appelez-nous -
21 216204900 Gasket, Cover Special Order $ 51.45

22 216084100 Cover,evaporator Appelez-nous -
23 216008801 Knob Appelez-nous -
24 09950853 Screw, Knob Appelez-nous -
25 0659547 Spacer-cover Appelez-nous -
26 216858001 Screw, Cover (6)   (Replaces: 5303161215) In-Stock Immediately $ 10.85

27 5303161233 Screw, Cover (3) Appelez-nous -
31 09948978 Insert Nut Appelez-nous -
32 5303208663 Plug, Indicator Control Appelez-nous -
33 216009000 Cover, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

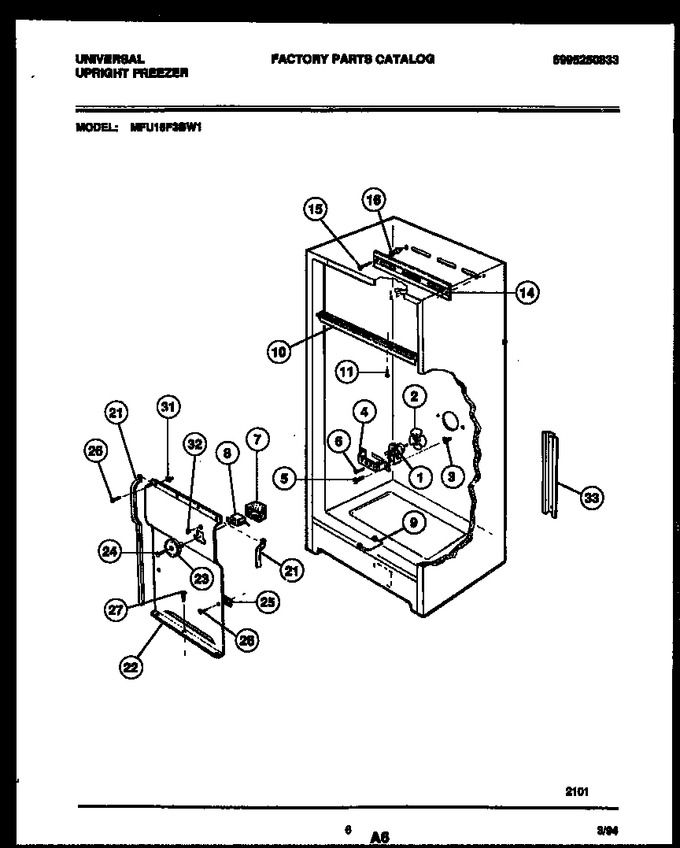

Diagram for MFU16F3BW1
