01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

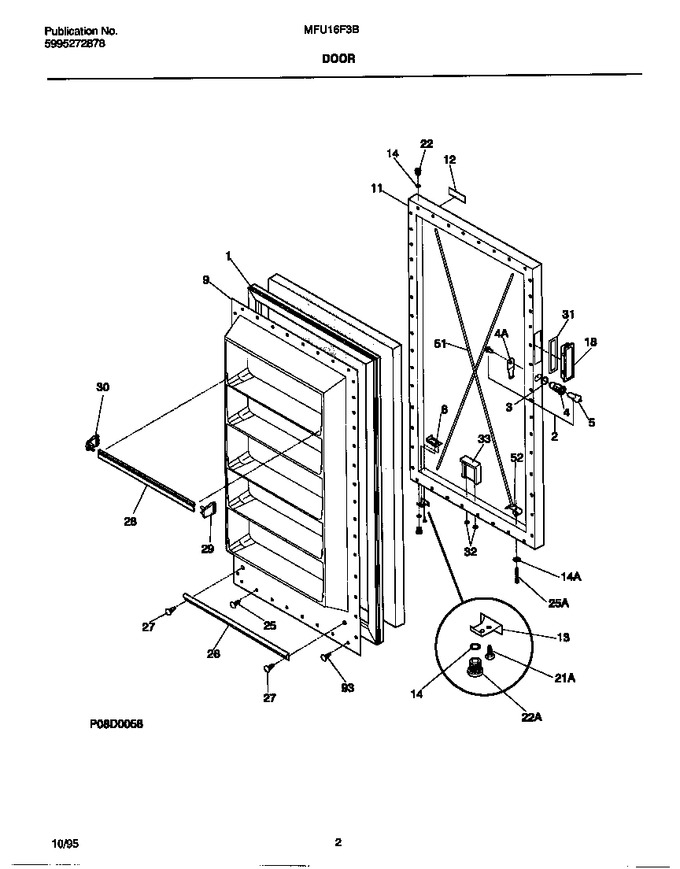

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206251		Gasket Door				$ 303.33
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	216330800		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216012908		Panel-inner Door\lid, White		Appelez-nous	-
11	216011712		Panel-outer Door, White		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
14	5303307087		Washer		Appelez-nous	-
18	216140200		Handle, Recessed, White		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	216365400		Screw, Adj Wire		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216273800		Rack-shelf, Narrow, White, (5)		Appelez-nous	-
29	216339800		End Cap, Narrow, White, Rh		Appelez-nous	-
30	5303925377		End Cap, Narrow, White, Lh   (Replaces: 216339900)			Immediately	$ 46.07
31	08009392		Gasket, White		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	08037415		Wire, Door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*27360	5303917276		Insulation				$ 330.91
