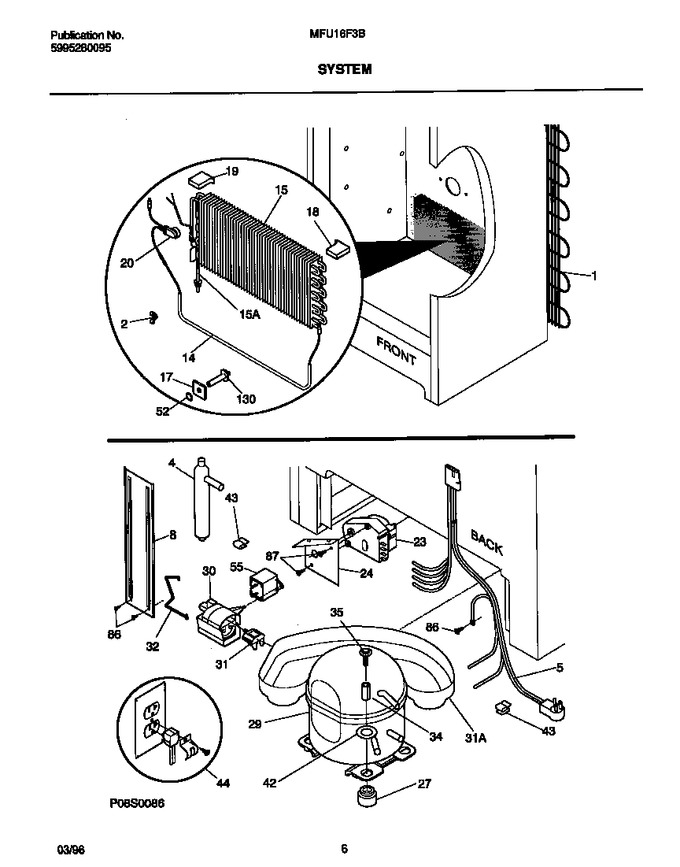

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216426300		Harness-wire		Appelez-nous	-
8	216009000		Cover, Wiring		Appelez-nous	-
14	216254600		Heater-defrost				$ 259.53
15	216385200		Heat Exchanger		Appelez-nous	-
15	216195900		Evaporator				$ 246.91
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	5308037967		Timer, Defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5303925388		Compressor, Service		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303925386		Pan-drain		Appelez-nous	-
31	216100104		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	06599544		Support, Evaporator		Appelez-nous	-
