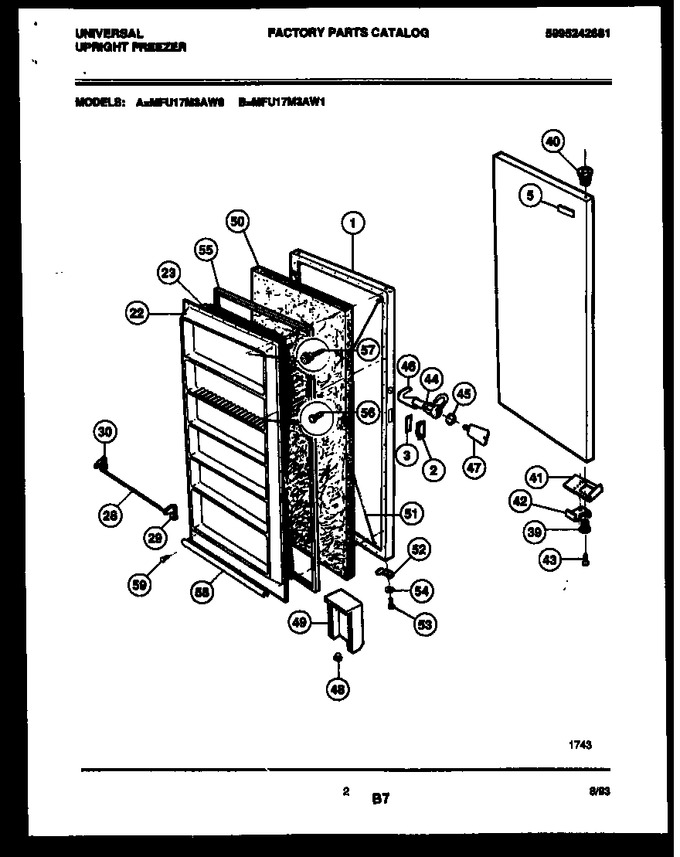

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011504		Panel-door-white		Appelez-nous	-
2	216140204		Handle-door-white		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
5	5303285577		Frame		Appelez-nous	-
22	216063511		Panel-inner-white		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216115100		Shelf Front-wire (5)		Appelez-nous	-
29	216257400		End Cap-rh-wire (5)		Appelez-nous	-
30	216257500		End Cap-lh-wire (5)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5303297490		Bearing, Top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Door Stop				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037953		Wire Adjusting (2)		Appelez-nous	-
52	05879857		Bracket (2)		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206257		Gasket Door		Appelez-nous	-
56	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5303300817		Gasket-white		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63

    View Diagram in Separate Window       Print Part List
