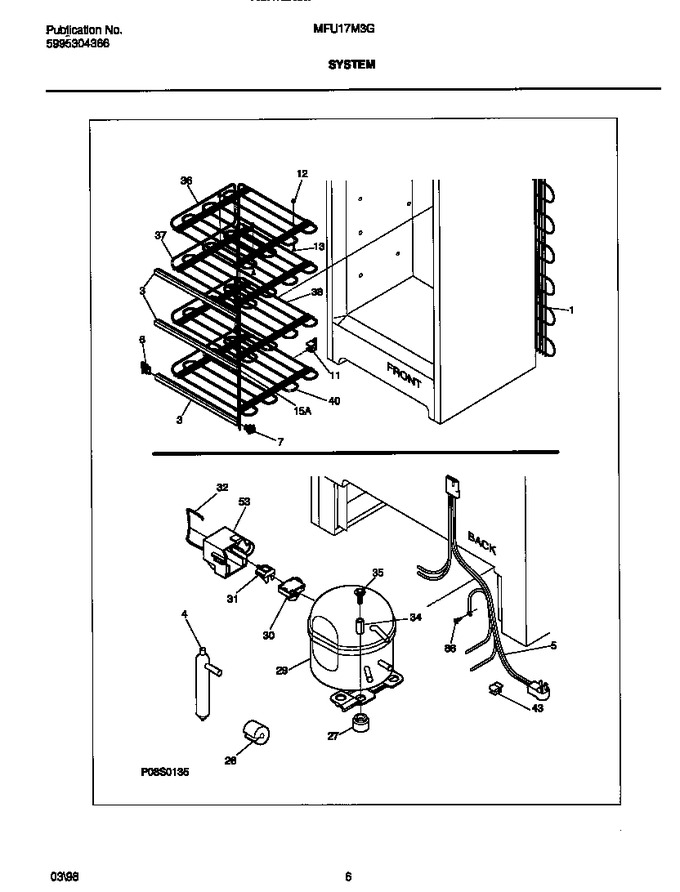

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216097900		Trim, Shelf, Evaporator		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216555500		Wiring-electrical,main				$ 17.17
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw				$ 3.31
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor Kit   (Replaces: 5303918003)				$ 671.86
30	216594300		Starter				$ 28.92
31	216100115		Overload Protector Grid-				$ 23.11
32	5303006412		Strap, Cover Mtg		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	297234500		Grid-top Evaporator   (Replaces: 216070500)				$ 357.92
37	297234500		Shelf-top Evaporator   (Replaces: 216070600)				$ 357.92
38	297234500		Shelf-middle Evaporator   (Replaces: 216070700)				$ 357.92
40	297234500		Shelf-bottom Evaporator   (Replaces: 216070800)				$ 357.92
43	5303212614		Clip Harness				$ 2.88
53	08006982		Cover-terminal		Appelez-nous	-
86	216036600		Screw		Appelez-nous	-
15A	216401400		Heat Exchanger				$ 297.89
