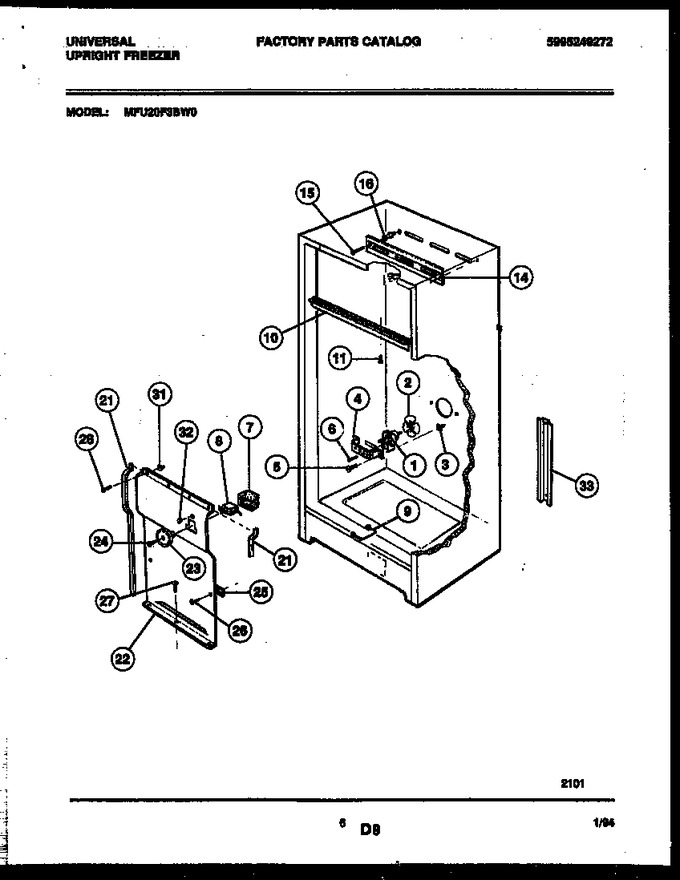

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205519		Motor, Fan		Appelez-nous	-
2	3205520		Blade, Fan		Appelez-nous	-
3	301036		Insert-nut   (Replaces: 3017666)				$ 15.90
4	08013207		Bracket				$ 12.92
5	216858001		Screw, Bracket   (Replaces: 5303161215)			Immediately	$ 10.85
6	08037849		Screw-motor To Bracket				$ 8.98
7	216230300		Cover, Control				$ 49.88
8	216215900		Control, Temperature		Appelez-nous	-
9	5303207388		Ground Wire, Cabinet		Appelez-nous	-
10	216241604		Shield, Light		Appelez-nous	-
11	5303283898		Screw, Shield		Appelez-nous	-
14	5303288233		Baffle		Appelez-nous	-
15	131168200		Screw-baffle (7)			Immediately	$ 14.18
16	08000456		Spacer, Baffle		Appelez-nous	-
21	216204900		Gasket, Cover				$ 51.45
22	216084200		Cover, Evaporator		Appelez-nous	-
23	216008801		Knob-control		Appelez-nous	-
24	09950853		Screw, Knob		Appelez-nous	-
25	06599546		Spacer-support, Evaporator		Appelez-nous	-
26	216858001		Screw, Cover (6)   (Replaces: 5303161215)			Immediately	$ 10.85
27	216283900		Screw, Cover (2)		Appelez-nous	-
31	09948978		Insert Nut		Appelez-nous	-
32	5303208663		Plug, Indicator Control		Appelez-nous	-
33	216009000		Cover, Wiring		Appelez-nous	-
