SELECT A DIAGRAM

01 - Cover


02 - Door

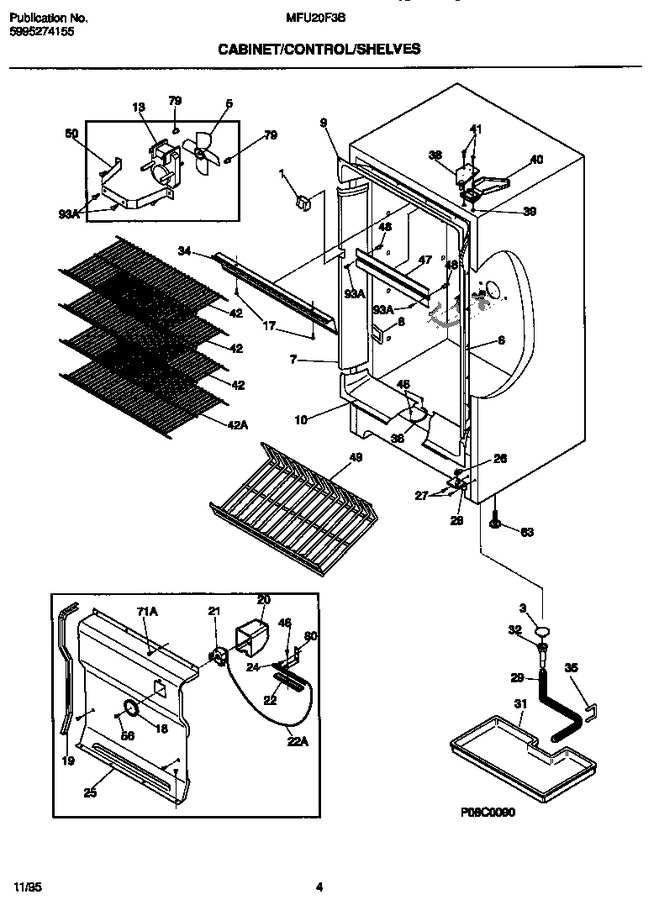

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216013600		Support, Lock		Appelez-nous	-
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216107500		Breaker, Hinge Side		Appelez-nous	-
7	216107601		Breaker, Lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216085800		Breaker, Bottom		Appelez-nous	-
13	216346100		Motor-evap Fan		Appelez-nous	-
17	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
18	216008801		Knob-control		Appelez-nous	-
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216084200		Cover, Evaporator		Appelez-nous	-
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1., Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216312201		Shield-light		Appelez-nous	-
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216266900		Shelf, Upper (3)		Appelez-nous	-
42	216267000		Shelf-bottom (2)		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216279000		Trivet		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	205363701		Foot-adjustable		Appelez-nous	-
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*50640	06594680		Clip, Breaker		Appelez-nous	-
*50641	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*50642	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
*50643	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
