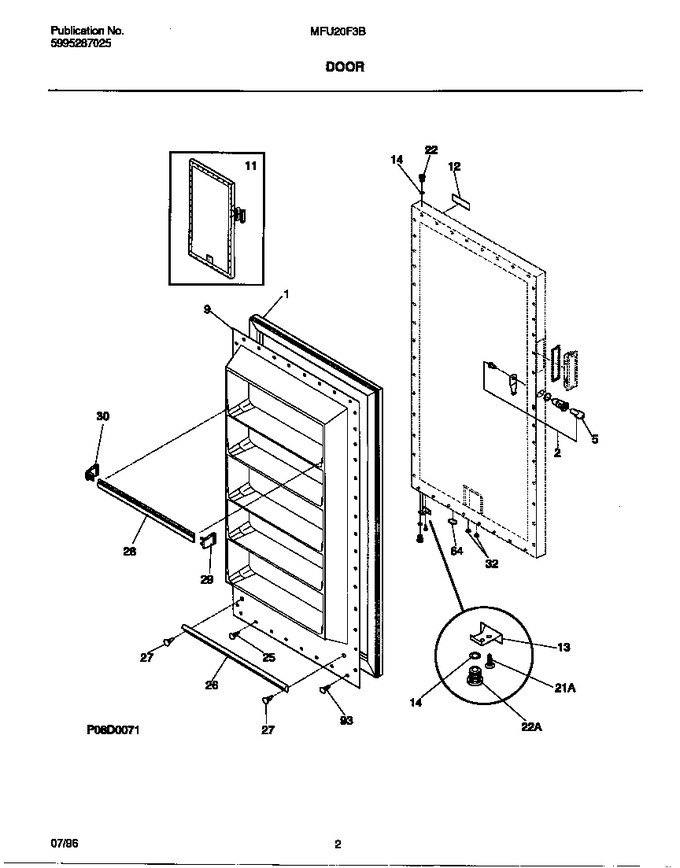

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216048804		Panel-inner Door, White		Appelez-nous	-
11	5303925373		Panel-outer Door Assy, W/handle &, Foam Insul, White		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216273800		Rack-shelf, Narrow, White, (5)		Appelez-nous	-
29	216334000		End Cap-rh-rack-door, Narrow, (4)				$ 47.48
30	21634100		End Cap-lh-rack-door, Narrow, (4)		Appelez-nous	-
32	216390000		Breather-air Duct, Door		Appelez-nous	-
64	216403700		Plug-buttom, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*86600	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
