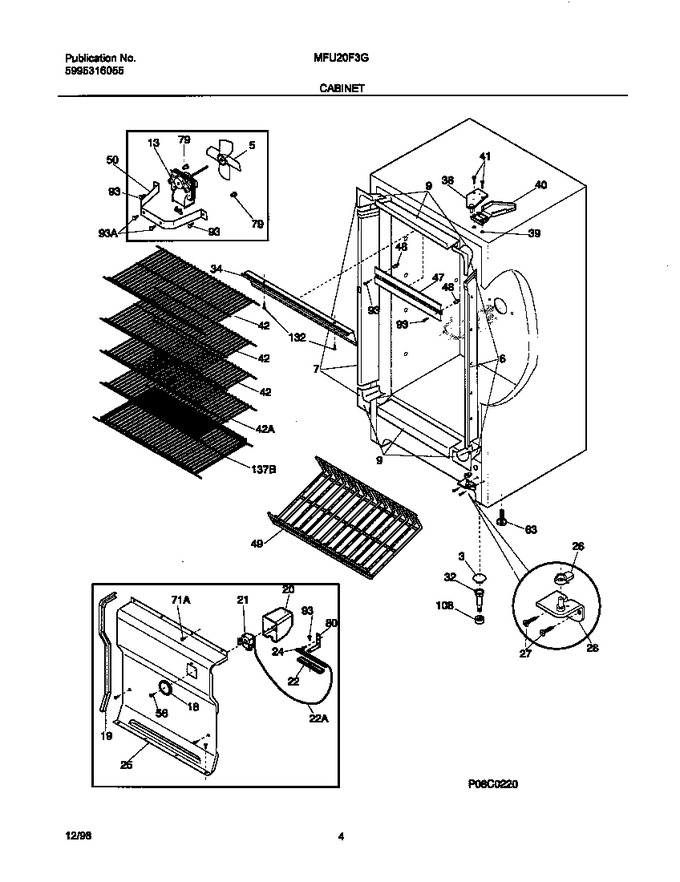

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	216346100		Motor-evap Fan		Appelez-nous	-
18	216591700		Knob-control		Appelez-nous	-
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	216521100		Control-temperature				$ 158.06
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216084200		Cover, Evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216557600		Shield-light		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216458500		Shelf,wire ,16.69x26.88 ,white ,(3)		Appelez-nous	-
42	216458400		Shelf,14.50x27.88 ,wh		Appelez-nous	-
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216279000		Trivet		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	5303302760		Screw				$ 8.72
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
137	216546000		Shelf-fixed W/frame,white		Appelez-nous	-
*41681	09948773		Insulation, Drain Tube				$ 12.60
*41682	216533300		Wire-ground, Fan Motor		Appelez-nous	-
*41683	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*41684	5303311565		Clip-cable				$ 2.10

    View Diagram in Separate Window       Print Part List
