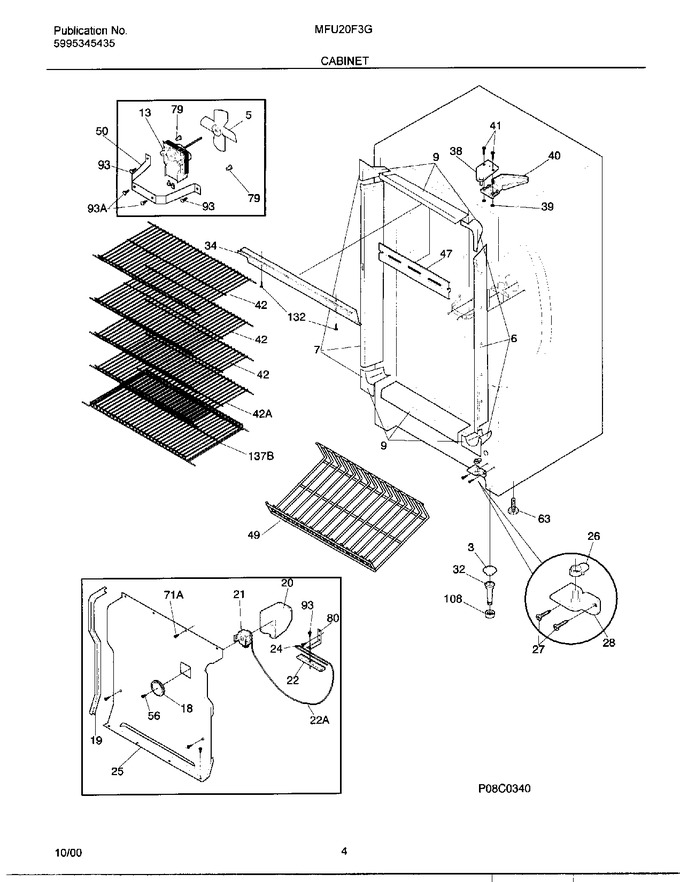

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 62.17 | |||||
| 6 | 216604100 | Breaker Kit W/corners |
|
- | |||||
| 7 | 216603600 | Breaker Kit W/corners,lock Catch |
|
- | |||||
| 9 | 216603300 | Breaker Kit W/corners,32`` ,top Or Bottom |
|
$ 94.19 | |||||
| 13 | 5304442620 | Motor-fan (Replaces: 216690400) |
|
$ 282.51 | |||||
| 18 | 216591700 | Knob-control |
|
- | |||||
| 19 | 216204901 | Gasket-cover Evap |
|
$ 9.08 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 22 | 05878562 | Clamp |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216665400 | Cover-evaporator |
|
- | |||||
| 26 | 216503300 | Ramp, Closer Door |
|
$ 8.82 | |||||
| 27 | 154518001 | Screw-hinge, Cr, 1/4-20 X 1.000, Btm (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216557600 | Shield-light |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 42 | 216458500 | Shelf,wire ,16.69x26.88 ,white ,(3) |
|
- | |||||
| 47 | 297192903 | Baffle-plate (Replaces: 216661600) |
|
Immediately | $ 25.31 | ||||
| 49 | 216279000 | Trivet |
|
- | |||||
| 50 | 216394050 | Bracket-motor Mtg Fan (Replaces: 216394000) |
|
$ 22.75 | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 79 | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 15.90 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 108 | 216388600 | Trap-drain |
|
$ 2.36 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 42A | 216458400 | Shelf,14.50x27.88 ,wh |
|
- | |||||
| 71A | 216036601 | Screw,quadrex (Replaces: 216347500) |
|
$ 13.65 | |||||
| 93A | 5303302760 | Screw |
|
$ 8.72 | |||||
| F137 | 216546000 | Shelf-fixed W/frame,white |
|
- | |||||
| F21 | 216521100 | Control-temperature |
|
$ 158.06 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 16.63 | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 09948773 | Insulation, Drain Tube |
|
$ 12.60 |
