SELECT A DIAGRAM
01 - Cover

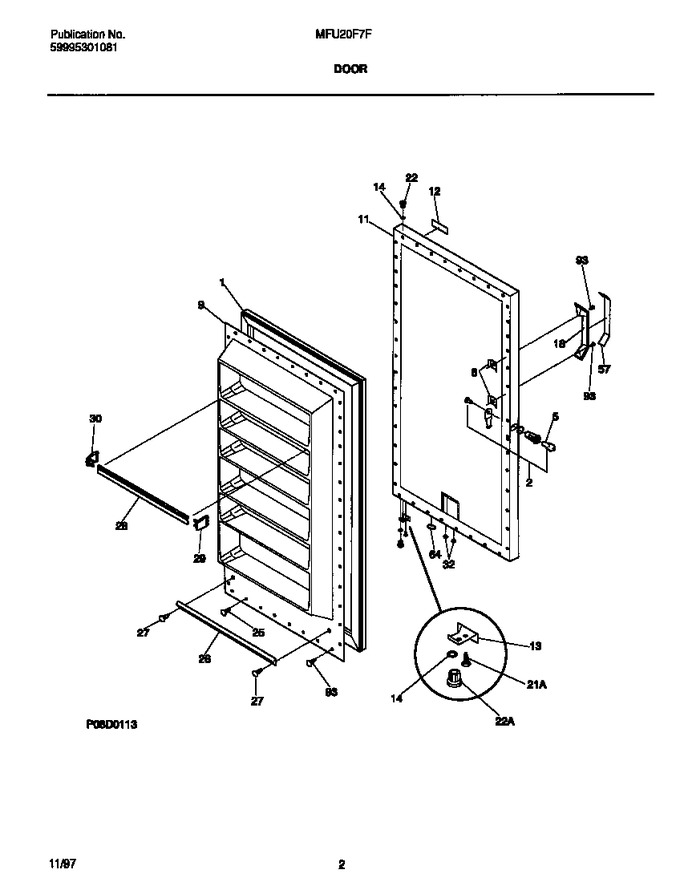

02 - Door
03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206261 | Gasket Door |
|
$ 254.52 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 6 | 218990001 | Screw-anchor,8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| 9 | 216048804 | Panel-inner Door, White |
|
- | |||||
| 11 | 5303925406 | Panel-outer Door Assy, W\foam Insul, White |
|
- | |||||
| 12 | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 216446900 | Handle,white |
|
$ 52.34 | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 06594681 | Gasket, Secondary |
|
- | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 28 | 216273900 | Rack-shelf, Wide, White, (1) |
|
$ 27.25 | |||||
| 29 | 216334300 | End Cap-wide, Lh |
|
- | |||||
| 30 | 216334200 | End Cap-wide, Rh |
|
$ 39.80 | |||||
| 32 | 5309950074 | Valve-breather, Door |
|
$ 12.48 | |||||
| 57 | 3017682 | Insert Handle |
|
Immediately | $ 43.24 | ||||
| 64 | 216403700 | Plug-button, Base Door |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| *44880 | 5303296404 | Clip-handle Base |
|
$ 1.68 |
