SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door

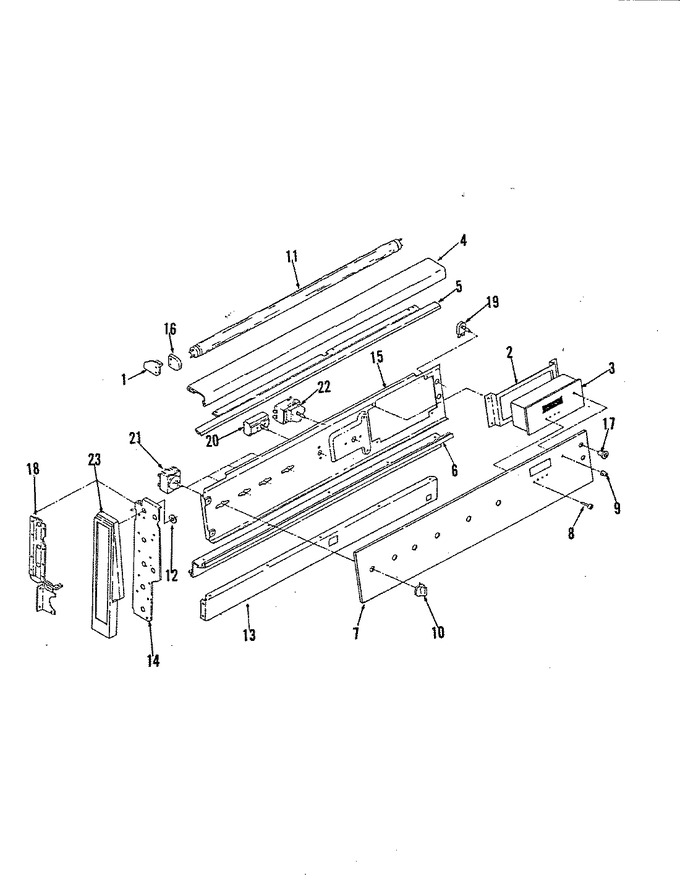

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1023200		Ballast	01	Appelez-nous	-
1	0284298		Bracket	01	Appelez-nous	-
1	0284291		Bracket	01	Appelez-nous	-
1	3801F095-45		Bracket, Clock Mtg	01	Appelez-nous	-
2	3801F118-45		Bracket, Clock Mtg	01	Appelez-nous	-
3	7601P047-60		+ Clock	01	Appelez-nous	-
4	7724E010		Cover Bkgd Lamp	01	Appelez-nous	-
5	1259618		Extrusion, Trim	01	Appelez-nous	-
6	1259558		Extrusion, Trim	01	Appelez-nous	-
7	7902P114-60		Glass, Bkgd	01	Appelez-nous	-
8	7711P171-60		Knob, Clock (button-blk)	01			$ 19.90
9	7711P172-60		Knob, Clock (blk)	01			$ 23.55
10	7711P018-60		Knob, Switch	01	Appelez-nous	-
11	WP95292		Light, Fluorescent   (Replaces: 1447200)	01		Immediately	$ 121.45
11	7407P022-60		Light, Signal	01	Appelez-nous	-
12	1555247		Grip Nut	01	Appelez-nous	-
13	2620W038-00		Panel, Backguard Black	21	Appelez-nous	-
13	2620W007-00		Panel, Lower	01	Appelez-nous	-
13	2620W031-00		Panel, Bkgd Lower	08	Appelez-nous	-
14	0719269		Plate	01	Appelez-nous	-
14	0719268		Plate	01	Appelez-nous	-
15	3605F098-20		Plate, Clock Mntg	01	Appelez-nous	-
16	1448213		Receptacle, Lamp	01	Appelez-nous	-
17	1762216		Sleeve	01	Appelez-nous	-
18	0862418		Support	01	Appelez-nous	-
18	0862417		Support	01	Appelez-nous	-
19	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	20			$ 91.35
19	1832379		Switch	01	Appelez-nous	-
19	7403P067-60		Switch   (Replaces: 1832349)	01			$ 91.35
20	W11122008		Switch, Inf. Control   (Replaces: 7403P073-60)	01			$ 143.28
21	W11122008		Switch, Inf. Control   (Replaces: 7403P169-60)	01			$ 143.28
21	7403E062		Switch, Auto	01	Appelez-nous	-
22	7404E003		Thermostat Ele	01	Appelez-nous	-
23	1916961		Trim	01	Appelez-nous	-
23	1916960		Trim	01	Appelez-nous	-
23	7720E061		Trim, Glass	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
