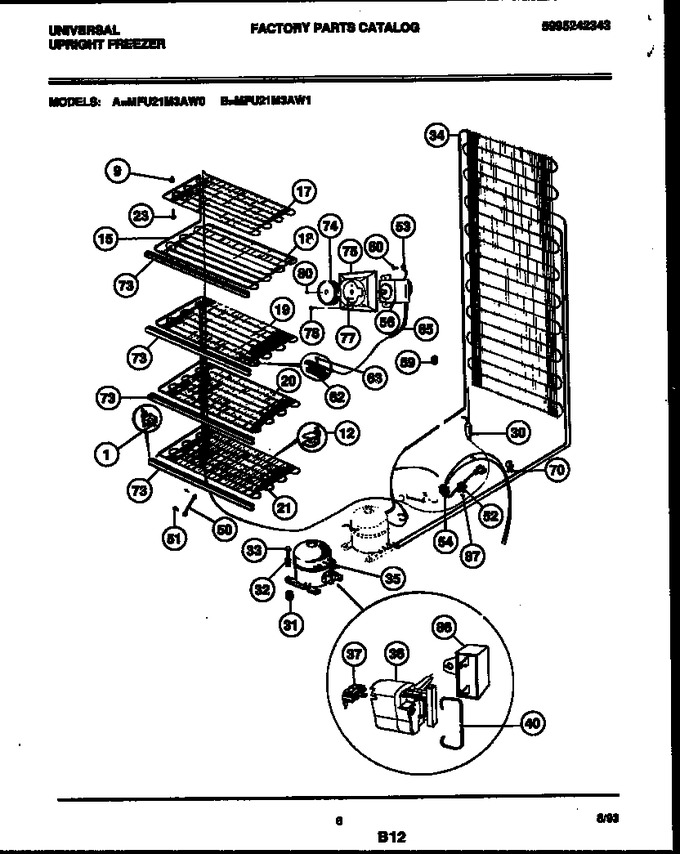

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297001600 | Support-front Lh (4) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9 | 216109800 | Spcr-top Grid Front (3) |
|
- | |||||
| 12 | 216225600 | Support-rear (8) |
|
- | |||||
| 15 | 5308010744 | Heat Exchanger |
|
- | |||||
| 17 | 5304506302 | Top Grid (Replaces: 216070900) |
|
$ 324.59 | |||||
| 18 | 5304506302 | First Shelf (Replaces: 216071000) |
|
$ 324.59 | |||||
| 19 | 216071100 | Second Shelf |
|
- | |||||
| 20 | 5304506302 | Third Shelf (Replaces: 216071200) |
|
$ 324.59 | |||||
| 21 | 5304506302 | Bottom Shelf (Replaces: 216071300) |
|
$ 324.59 | |||||
| 23 | 216138900 | Screw-top Grid (3) |
|
$ 3.31 | |||||
| 30 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 31 | 216498900 | Grommet (4) (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 5306594529 | Sleeve (3) |
|
$ 10.34 | |||||
| 33 | 5303272328 | Screw (3) |
|
$ 10.34 | |||||
| 34 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 35 | 216110100 | Compressor |
|
- | |||||
| 36 | 216008900 | Relay |
|
- | |||||
| 37 | 5303206836 | Overload |
|
- | |||||
| 40 | 215012000 | Clamp, Cover |
|
$ 2.63 | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08037851 | Screw |
|
$ 3.57 | |||||
| 52 | 08016777 | Clamp-service Cord |
|
- | |||||
| 53 | 5300125347 | Ground Wire |
|
- | |||||
| 54 | 216195000 | Wiring Harness |
|
- | |||||
| 56 | 216023000 | Control-temperature |
|
- | |||||
| 59 | 08037401 | Retainer-harness (2) |
|
$ 2.85 | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp-capillary |
|
- | |||||
| 63 | 5300052943 | Screw, Clamp |
|
$ 5.30 | |||||
| 65 | 5308037932 | Sleeve, Capillary Tube |
|
- | |||||
| 70 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 73 | 216097900 | Front-shelf (4) |
|
- | |||||
| 74 | 216008602 | Knob-control |
|
- | |||||
| 75 | 5303288184 | Housing Control |
|
- | |||||
| 77 | 08003539 | Screw Control To Cover |
|
- | |||||
| 78 | 5300050149 | Screw Cover To Liner |
|
- | |||||
| 80 | 09950853 | Screw, Knob |
|
- | |||||
| 86 | 5303289028 | Run Capacitor |
|
- | |||||
| 87 | 216858001 | Screw-clamp (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 1A | 297001500 | Support Front Rh (4) (non-illustrated) (Replaces: 08037928) |
|
$ 18.08 |
