SELECT A DIAGRAM

01 - Cover


02 - Top/burner/manifold


03 - Door/drawer

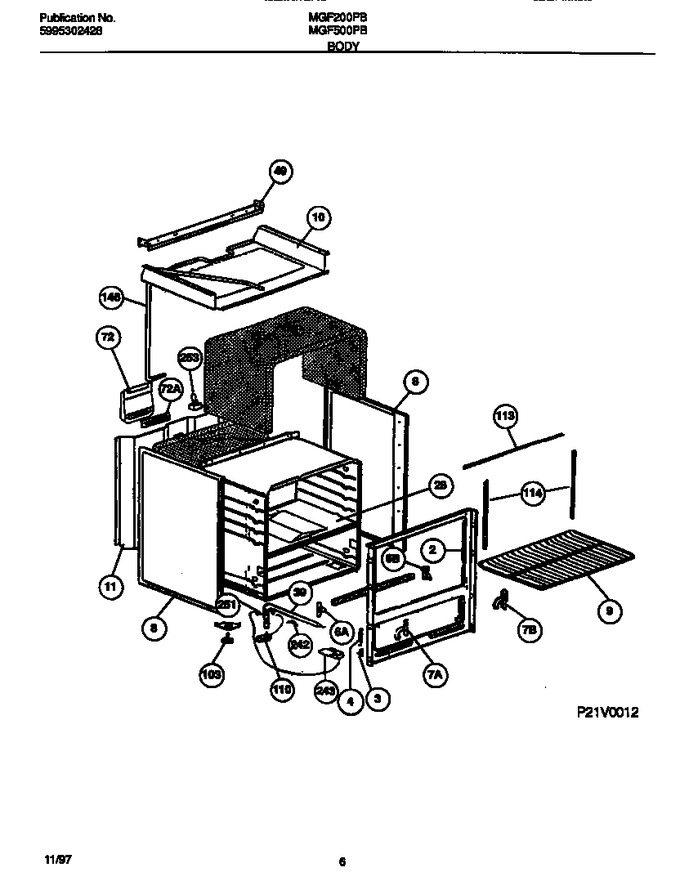

04 - Body


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	N/A		Not Applicable		Appelez-nous	-
3	5303285746		Bracket-spring		Appelez-nous	-
4	5304402779		Spring-oven Door		Appelez-nous	-
4	5303285924		Spring-oven Door		Appelez-nous	-
8	5303285710		Panel-bodyside, White		Appelez-nous	-
8	5303285711		Panel-bodyside, Almond		Appelez-nous	-
9	5303285927		Rack-oven		Appelez-nous	-
9	5303285756		Rack-oven		Appelez-nous	-
10	5303285748		Burner Box		Appelez-nous	-
10	5303285928		Burner Box		Appelez-nous	-
11	5303285929		Back-main		Appelez-nous	-
11	5303285754		Back-main		Appelez-nous	-
28	5303285930		Bottom-oven		Appelez-nous	-
28	5303285755		Bottom-oven		Appelez-nous	-
49	5303285931		Support-burner		Appelez-nous	-
49	5303285758		Support-burner		Appelez-nous	-
72	5303285760		Vent Box		Appelez-nous	-
103	5303285762		Leveler-leg		Appelez-nous	-
113	5303285765		Seal-oven Door, Top				$ 81.74
113	5303285932		Seal-oven Door, Top		Appelez-nous	-
251	5303285781		Ignitor-oven Spark		Appelez-nous	-
253	5303285784		Plug-jumper		Appelez-nous	-
253	N/A		Not Applicable		Appelez-nous	-
6A	5303285925		Hinge-oven Body, Lh		Appelez-nous	-
6B	5303285925		Hinge-oven Body, Rh		Appelez-nous	-
72A	5303285761		Gasket-vent Box		Appelez-nous	-
7A	5303285926		Hinge-oven Door, Lh		Appelez-nous	-
7A	5304402778		Hinge-oven Door Assy, Lh		Appelez-nous	-
7B	5303285926		Hinge-oven Door, Rh		Appelez-nous	-
7B	5304402777		Hinge-oven Door Assy, Rh		Appelez-nous	-
F110	5303285749		Valve-oven Safety				$ 477.96
F114	5303285764		Seal-oven Door, Sides		Appelez-nous	-
F146	5303285767		Tubing-oven Supply		Appelez-nous	-
F146	5303285933		Tubing-oven Supply		Appelez-nous	-
F242	5303285783		Pilot Assy-electric Ignition		Appelez-nous	-
F243	5303200332		Module-spark		Appelez-nous	-
F39	5303285753		Burner-oven		Appelez-nous	-
NI	5303285771		Anti-tip Kit		Appelez-nous	-
NI	5303285921		Insulation-oven Wrapper		Appelez-nous	-
NI	5303285772		Insulation-oven Wrapper		Appelez-nous	-
NI	5303285922		Insulation-oven Back		Appelez-nous	-
NI	5303285773		Insulation-oven Back		Appelez-nous	-
NI	5303265923		Insulation-oven Front		Appelez-nous	-
NI	5303285774		Insulation-oven Front		Appelez-nous	-
NI	5303285764		Seal-oven Door		Appelez-nous	-
NI	5303285775		Hinge Pin-oven Door		Appelez-nous	-
NI	5303285776		Cotter Pin-oven Door		Appelez-nous	-
NI	5303285778		Cover-spark Module		Appelez-nous	-
NI	5303305189		Cord-power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
