02 - Backguard

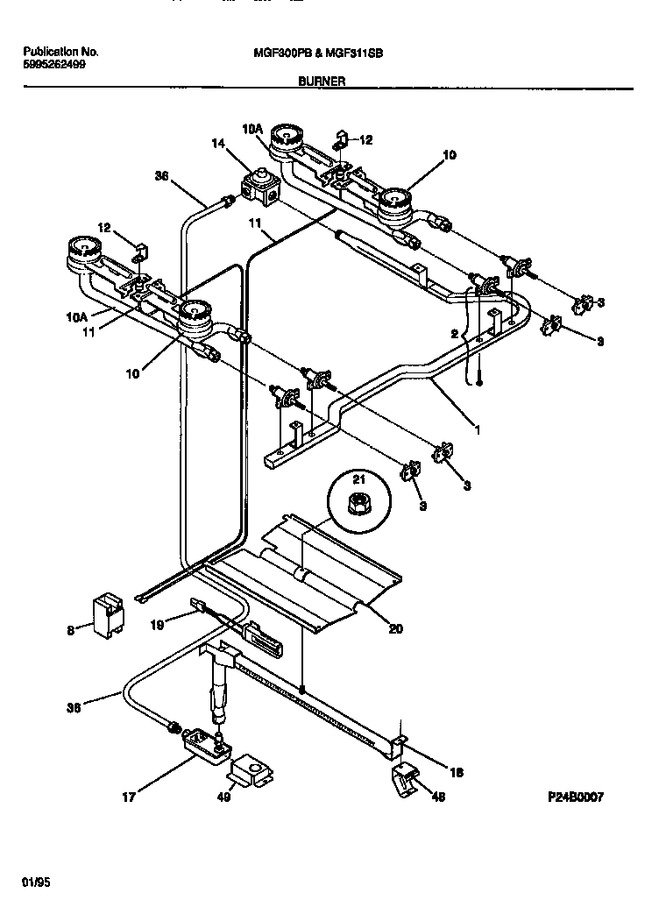

04 - Burner
05 - Body
06 - Top/drawer
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272435 | Manifold Pipe |
|
- | |||||
| 2 | 316031700 | Valve-top Burner, 2 Position, (4), W/screws |
|
- | |||||
| 3 | 316032001 | Switch-igniter, (4) |
|
$ 69.35 | |||||
| 8 | 5303200669 | Spark Module |
|
- | |||||
| 10 | 5304506427 | Burner-top, Front (Replaces: 316039002) |
|
$ 101.63 | |||||
| 11 | 3200276 | Igniter-top Burner, Base, (2) |
|
- | |||||
| 12 | 3016993 | Retainer-igniter |
|
- | |||||
| 14 | 316082900 | Regulator, Pressure |
|
$ 563.58 | |||||
| 17 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| 18 | 3131439 | Burner-oven |
|
$ 204.59 | |||||
| 19 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 20 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 36 | 316083000 | Tubing, 3/8, Alum |
|
$ 121.49 | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 49 | 3131438 | Bracket, Safety Valve |
|
- | |||||
| 10A | 5304506426 | Burner-top, Rear (Replaces: 316039003) |
|
$ 100.05 | |||||
| 3A | 5303935040 | Switch Harness Terminal Kit (non-illustrated) |
|
$ 49.67 |
