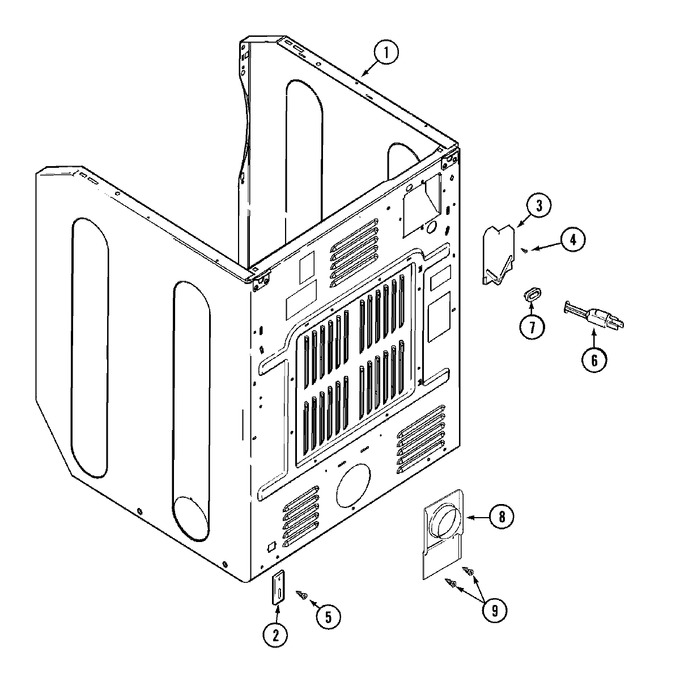

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002277		Cabinet (wht)	10	Appelez-nous	-
2	33002060		Bracket, Security	10	Appelez-nous	-
3	33001795		Cover, Terminal Block	10	Appelez-nous	-
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
6	33002323		Shield, Power Cord (102``)	10	Appelez-nous	-
8	22002528		Bracket, Exhaust Duct Assy.	10	Appelez-nous	-
9	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
