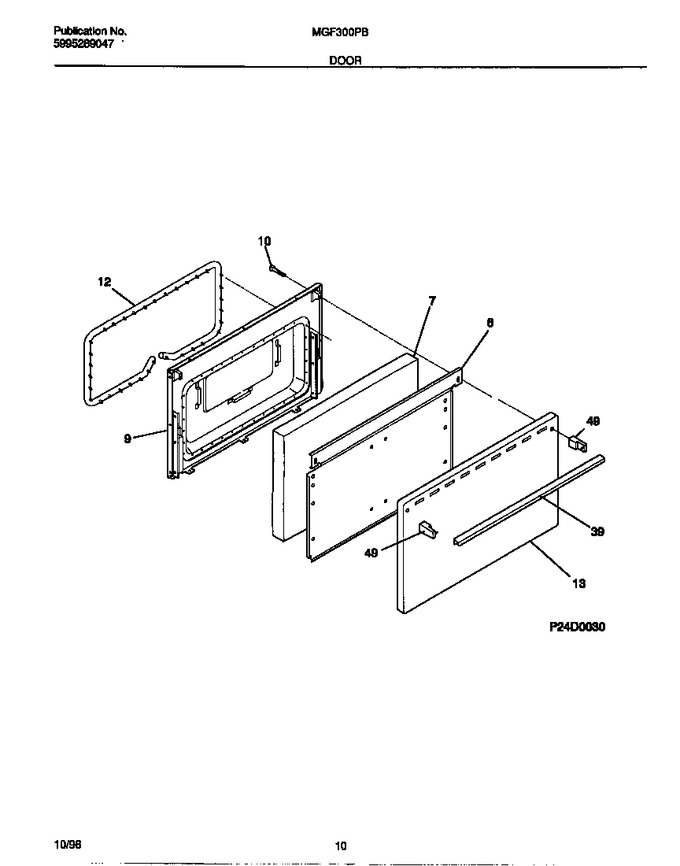

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	316091402		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3202315		Panel, Oven Door, White		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
60	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*05606	316071600		Plate Warning/caution		Appelez-nous	-
*05607	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*05608	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*05609	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*05610	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
