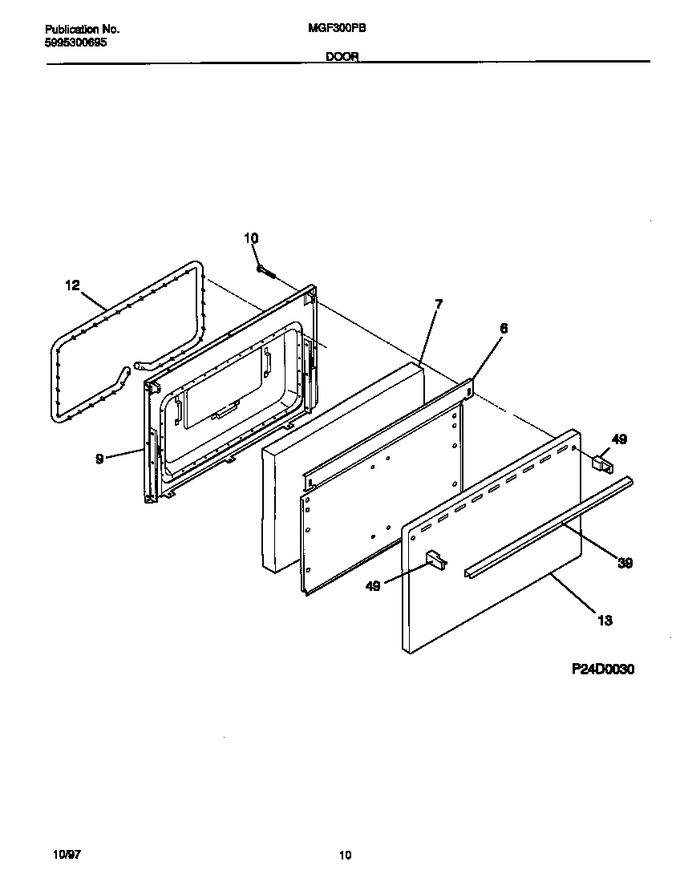

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3202315		Panel, Oven Door, White		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
*75369	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*75370	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*75371	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
39A	316020204		Handle-door, Black, Oven		Appelez-nous	-
39B	316008401		Washer, 3/4 X 1/4, Steel, (2) (not Illustrated)				$ 11.34
