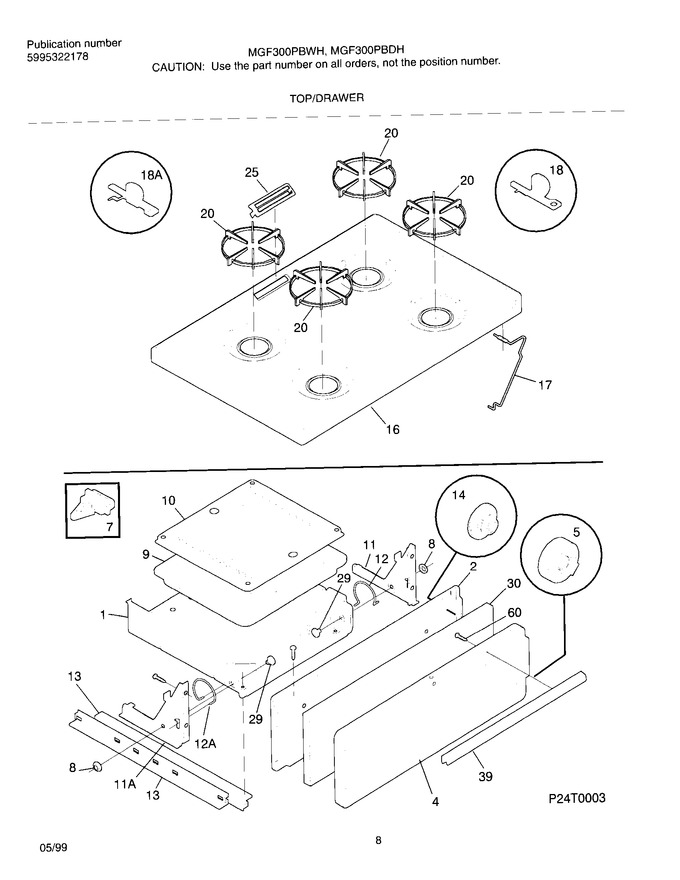

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	3206214		Main Top - White		Appelez-nous	-
16	3206215		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Brkt Hinge Main Top-rh		Appelez-nous	-
20	316055800		Grate, (4)				$ 43.99
25	3131190		Cover-vent		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifold Panel   (Replaces: 316021108)				$ 10.02
	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
11A	316066300		Bracket-broiler Hinge, Lh		Appelez-nous	-
12A	3018618		Spring-broiler, Lh		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
