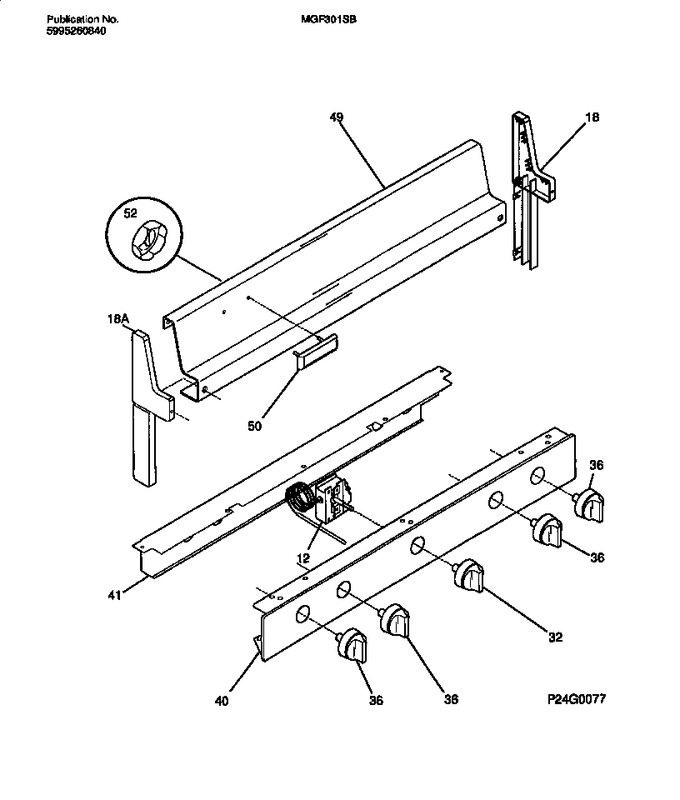

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 18 | 3202802 | End Cap,black ,rh |
|
- | |||||
| 32 | 5303288194 | Knob-thermostat |
|
$ 169.30 | |||||
| 36 | 5303288187 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009220 | Panel-manifold |
|
- | |||||
| 41 | 3203443 | Cover-manifold |
|
- | |||||
| 49 | 3051198 | Panel-backguard, Almond |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| *85360 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *85361 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 18A | 3202801 | End Cap,black ,lh |
|
- |
