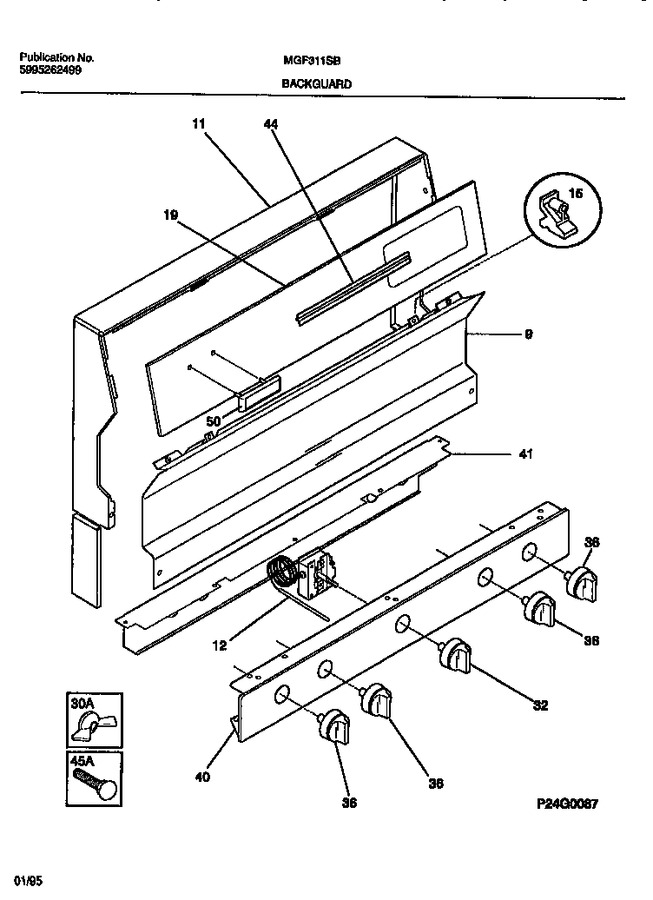

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034107		Panel, Control, Metal		Appelez-nous	-
32	5303288194		Knob-thermostat				$ 169.30
36	5303288187		Knob-top Valve, (4)		Appelez-nous	-
40	316009220		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316067000		Bezel, Nameplate, Black		Appelez-nous	-
*51205	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*51206	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*51207	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
12A	5303291898		Insulator-thermostat, (non-illustrated)		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt-fastener, Nylon		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
