View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

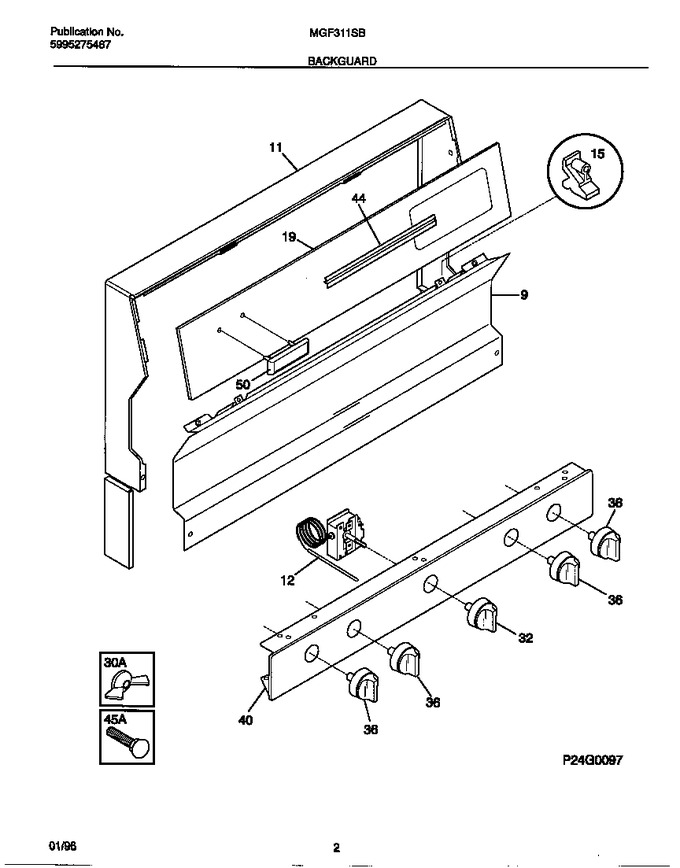

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316043602 | Trim-splasher, Almond |
|
- | |||||
| 11 | 316057002 | Trim-wrapper |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034107 | Panel, Control, Metal |
|
- | |||||
| 30 | 316064300 | Nut,nylon |
|
- | |||||
| 32 | 5303288194 | Knob-thermostat |
|
$ 169.30 | |||||
| 36 | 5303288187 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009220 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 45 | 316056902 | Bolt-fastener, Nylon |
|
- | |||||
| 50 | 316067003 | Bezel-nameplate |
|
- | |||||
| *08040 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *08041 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *08042 | 5303293427 | Screw, 6, 20 X 1/2, 5 Oval Head |
|
- | |||||
| 12A | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 12B | 5303291898 | Insulator-thermostat (not Illustrated) |
|
- |
