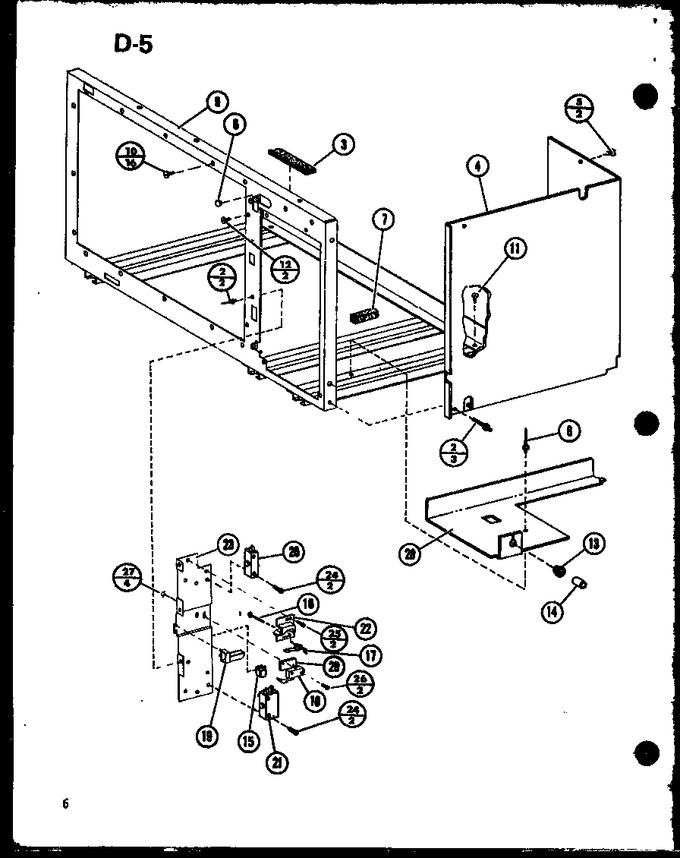

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	A4539601		Pop Rivet		Appelez-nous	-
3	A3030341		Gasket		Appelez-nous	-
4	D7515102		Control Cover		Appelez-nous	-
5	M0213815		Screw		Appelez-nous	-
6	A1511502		Bumper		Appelez-nous	-
7	A3030340		Gasket-per Ft		Appelez-nous	-
8	A4539618		.156 Pop Rivet		Appelez-nous	-
9	D7353122		Yoke Weld-pntd		Appelez-nous	-
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
11	M0220114		Screw		Appelez-nous	-
12	WP488234		Screw   (Replaces: M0234422)				$ 6.07
13	M0370006		Strain Relief		Appelez-nous	-
14	M0321007		Sleeve		Appelez-nous	-
15	M0110505		Clip-cable		Appelez-nous	-
16	A3182601		Pin Bell-crank		Appelez-nous	-
17	B8305701		Lever		Appelez-nous	-
18	B8306602		Limit Switch		Appelez-nous	-
19	C8840402		Door Guide,sleeve		Appelez-nous	-
20	C8842003		Switch, Limit		Appelez-nous	-
21	C8842004		Switch Limit		Appelez-nous	-
22	C8889701		Door Catch		Appelez-nous	-
23	D7545101		Bracket		Appelez-nous	-
24	M0202521		Screw		Appelez-nous	-
25	M0211514		Screw A K		Appelez-nous	-
26	M0229005		Screw K		Appelez-nous	-
27	M0282005		Nut K				$ 7.07
28	D7589202		Cont Cover Weld		Appelez-nous	-
29	A1032302		Insulation Intlk Brk		Appelez-nous	-
