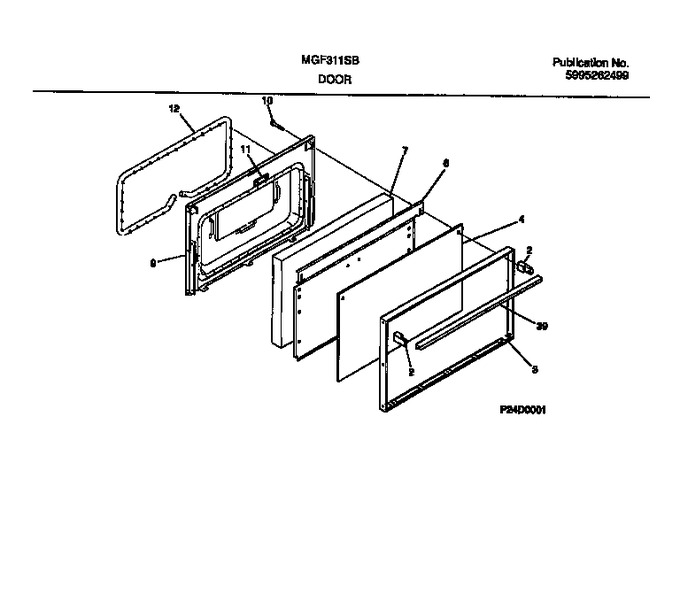

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
9	316066602		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
*51202	316071600		Plate Warning/caution		Appelez-nous	-
*51212	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*51213	5303299158		Screw, 8 18 X 1/2, Sdr, 8-18 X 1/2, Blk		Appelez-nous	-
*51214	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
