SELECT A DIAGRAM

01 - Cover


03 - Backguard


07 - Burner


09 - Body


11 - Top/drawer

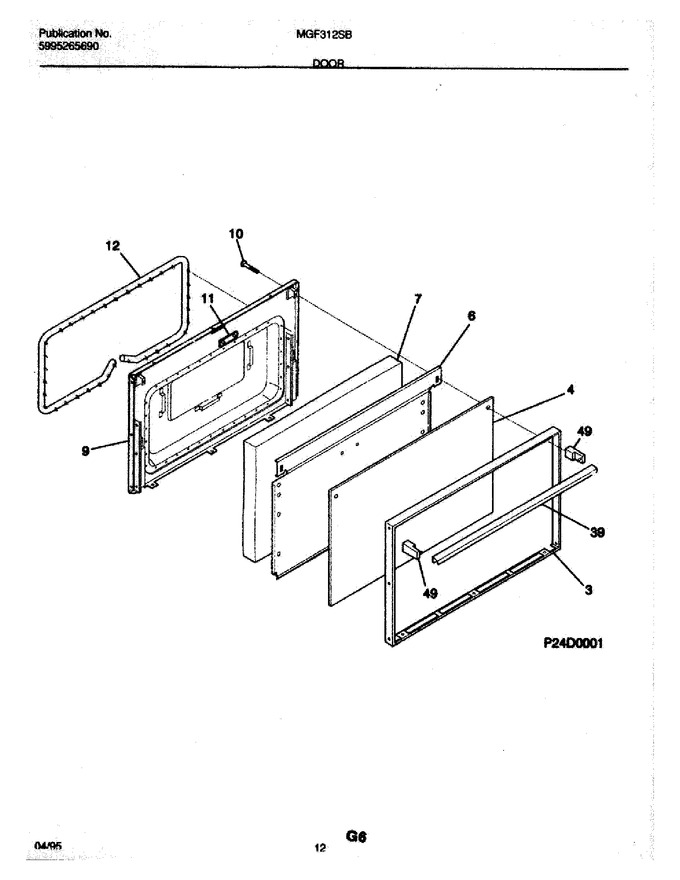

13 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	5303051153		Glass-oven Door, Soild Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
9	316066602		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
	316065300		Plate Warning/caution		Appelez-nous	-
	5303299158		Screw, 8 18 X 1/2, Sdr, 8-18 X 1/2, Blk		Appelez-nous	-
	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
	316071600		Plate Warning/caution		Appelez-nous	-
	3203618		Rivet-pop, Waring-plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
