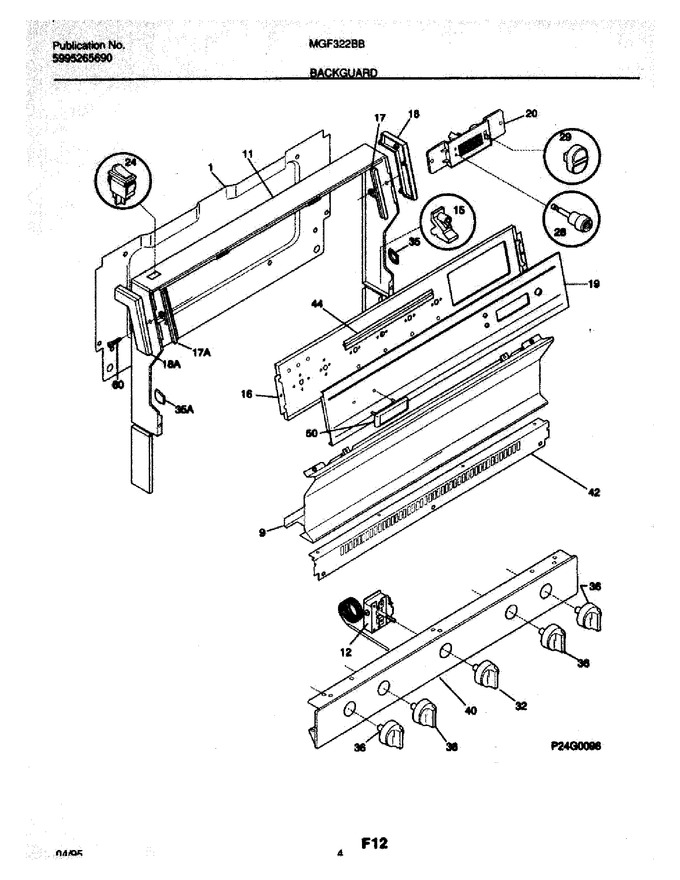

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043502		Trim, Splasher, Almond		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	5303291898		Insulator, Thermostat		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
19	316034509		Panel, Control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	5303288194		Knob-thermostat				$ 169.30
35	3203077		End Cap,rh		Appelez-nous	-
36	5303288187		Knob-top Valve, (4)		Appelez-nous	-
40	316009220		Panel-manifold		Appelez-nous	-
42	3131241		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316067000		Bezel, Nameplate, Black		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	5303272307		End Cap,black ,lh		Appelez-nous	-
35A	3203076		End Cap,lh		Appelez-nous	-
