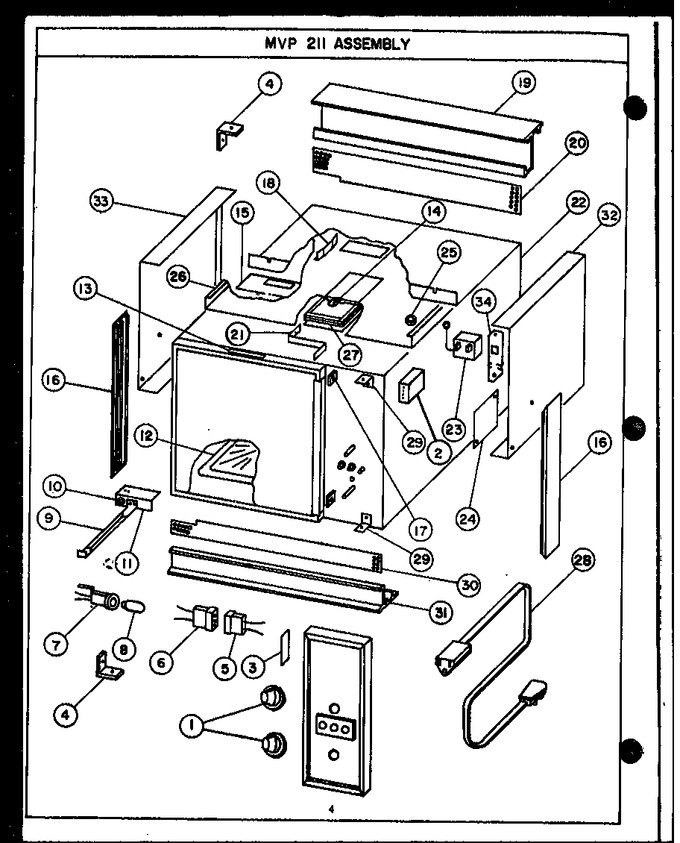

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67605		Knob, Timer & Variable Control		Appelez-nous	-
2	Y67302		Connector Housing, 4-circuit		Appelez-nous	-
3	69184		Label, Microwave Warning				$ 77.60
4	68364		Corner Brace		Appelez-nous	-
5	Y71770		Receptacle, Disconnect		Appelez-nous	-
6	Y71769		Plug, Disconnect		Appelez-nous	-
7	Y68882		Assembly Socket, Oven Lamp		Appelez-nous	-
8	68901		Lamp, Candelabra		Appelez-nous	-
9	68916		Guide, Oven Light		Appelez-nous	-
10	78876		Strain Relief Bushing		Appelez-nous	-
11	68311		Bracket, Lamp		Appelez-nous	-
12	69199		Glass Tray, Upper Oven		Appelez-nous	-
13	68250		Label D.h.e.w.		Appelez-nous	-
14	Y0091587		Cable, Clip Esm		Appelez-nous	-
15	0068991		Plate, Air Seal		Appelez-nous	-
16	67142		Side Trims		Appelez-nous	-
17	Y0097916		Nut, Speed No.6-32		Appelez-nous	-
18	68917		Side Shield, Oven Light		Appelez-nous	-
19	Y68374		Top Trim		Appelez-nous	-
20	Y68371		Screen, Top Trim		Appelez-nous	-
21	69432		Baffle, Oven Vent				$ 264.99
22	68299		Enclosure, Microwave Module		Appelez-nous	-
23	Y68333		Male Plug		Appelez-nous	-
24	Y67297		Insulation Pad		Appelez-nous	-
25	68649		Strain Relief Bushing, Oven To				$ 78.73
26	Y69446		Oven Top		Appelez-nous	-
27	69182		Tape Seal		Appelez-nous	-
28	68358		Power Supply Cord		Appelez-nous	-
29	68266		Brace, Control Panel		Appelez-nous	-
30	68365		Screen Bottom Trim		Appelez-nous	-
31	Y68373		Bottom Trim		Appelez-nous	-
32	67144		Side Enclosure-right Side		Appelez-nous	-
33	67143		Side Enclosure- Left Side		Appelez-nous	-
34	67874		Mounting Plate Outlet		Appelez-nous	-
