Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061846		Trim-wrapper, Black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082605		Panel-control, Metal		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316102300		Knob, Thermostat   (Replaces: 316009107)				$ 65.22
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316062325		Panel, Manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*72240	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*72241	316096900		Bezel,nameplate ,black				$ 15.38

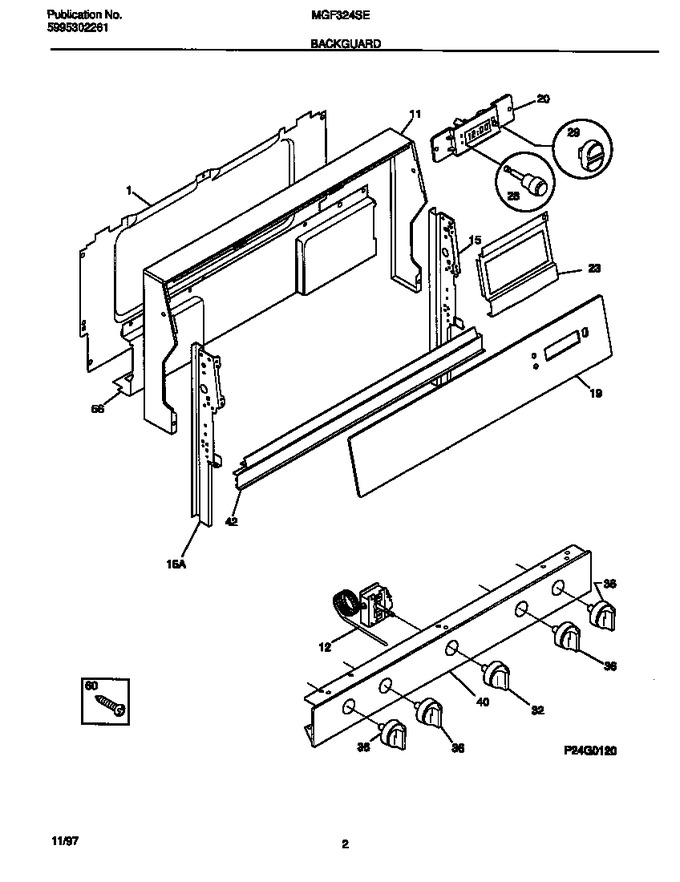

    View Diagram in Separate Window       Print Part List
