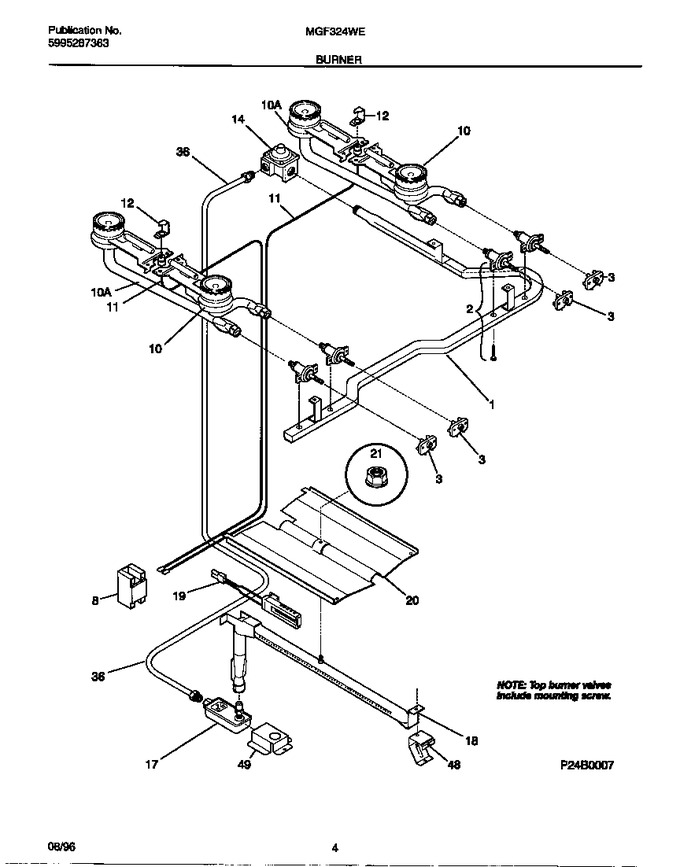

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303272435		Manifold Pipe		Appelez-nous	-
2	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
2	316098600		Valve-top Burner, 2-position, (4)		Appelez-nous	-
3	316032001		Switch-igniter, (4)				$ 69.35
3	5303935040		Switch Harness Terminal Kit (not-illustrated)				$ 49.67
8	5303200669		Spark Module		Appelez-nous	-
10	5304506426		Burner-top, Rear   (Replaces: 316039003)				$ 100.05
10	5304506427		Burner-top, Front   (Replaces: 316039002)				$ 101.63
11	3200276		Igniter-top Burner, Base, 50``		Appelez-nous	-
11	5303289336		Igniter-top Burner, Base, 33``		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
14	316021104		Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (not Illustrated)				$ 7.79
14	316082900		Regulator, Pressure				$ 563.58
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316083000		Tubing, 3/8, Alum				$ 121.49
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
