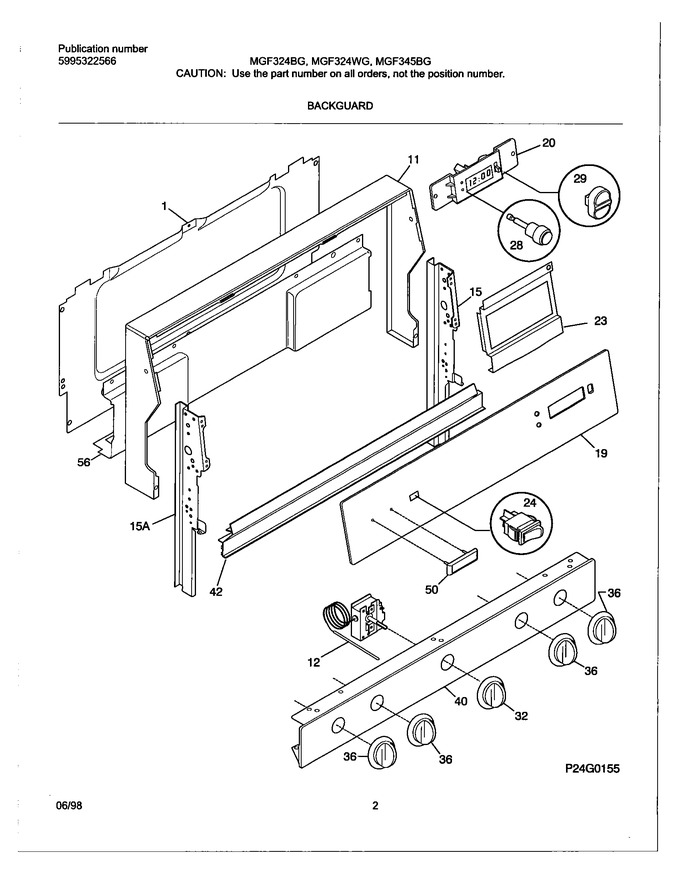

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061857		Trim-wrapper,textured ,white		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082653		Panel-control,metal		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock,white , Clock Set				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
32	316109509		Knob-thermostat,white		Appelez-nous	-
36	316109508		Knob-top Valve,white ,(4)		Appelez-nous	-
40	316086820		Panel-manifold, White		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
50	316096901		Nameplate, White				$ 9.82
56	316074907		Deflector-flue, Black		Appelez-nous	-
*58560	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*58561	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*58562	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*58564	316105805		Installation Instructions		Appelez-nous	-
*58565	316112500		Template, Anti-tip Bracket				$ 3.55
