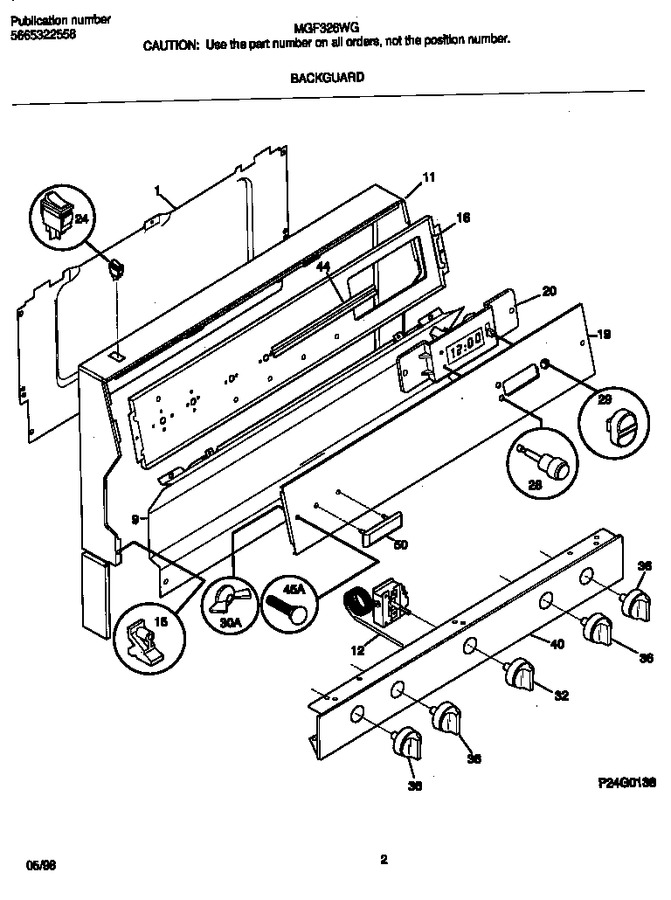

1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043611		Trim-splasher, White		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
19	316034125		Panel-control,metal ,white		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock,white , Clock Set				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
30	316064300		Nut,nylon		Appelez-nous	-
32	316102303		Knob-thermostat,black				$ 61.43
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
40	316062354		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
50	316096901		Nameplate, White				$ 9.82
*25360	316002989		Instructions,installation		Appelez-nous	-
*25361	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*25362	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
