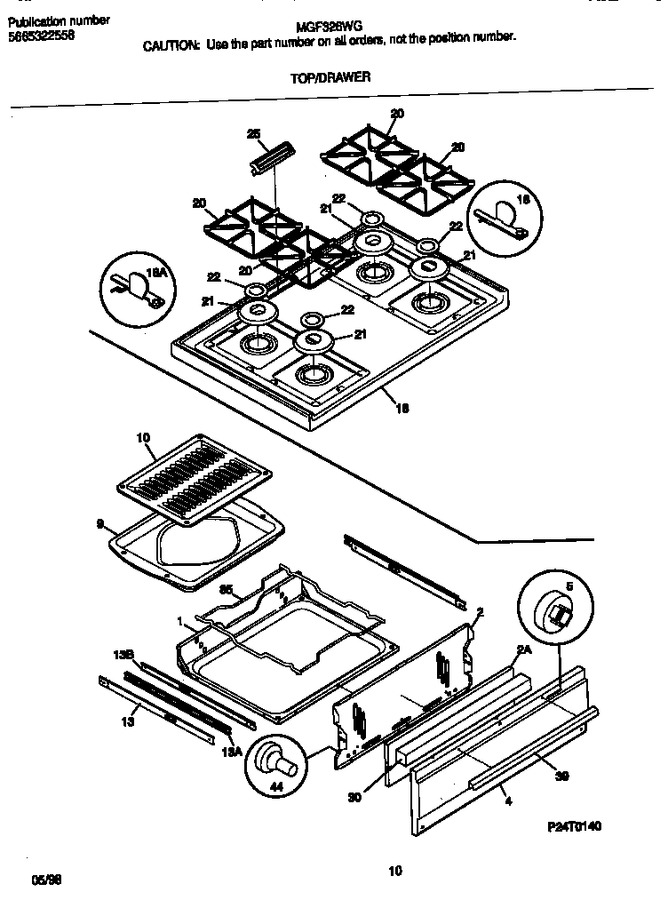

06 - Top/drawer


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
16	316104409		Maintop Assm.-white,metal ,enamel ,white		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316010901		Cap-burner,gloss Black ,small ,(4)				$ 69.01
25	316104500		Cover-vent,metal ,chrome		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
44	3131903		Bumper				$ 55.36
85	316110500		Rack,low Broil		Appelez-nous	-
*25382	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*25383	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*25384	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*25386	316072100		Bushing, Wire		Appelez-nous	-
*25387	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
