01 - Cover

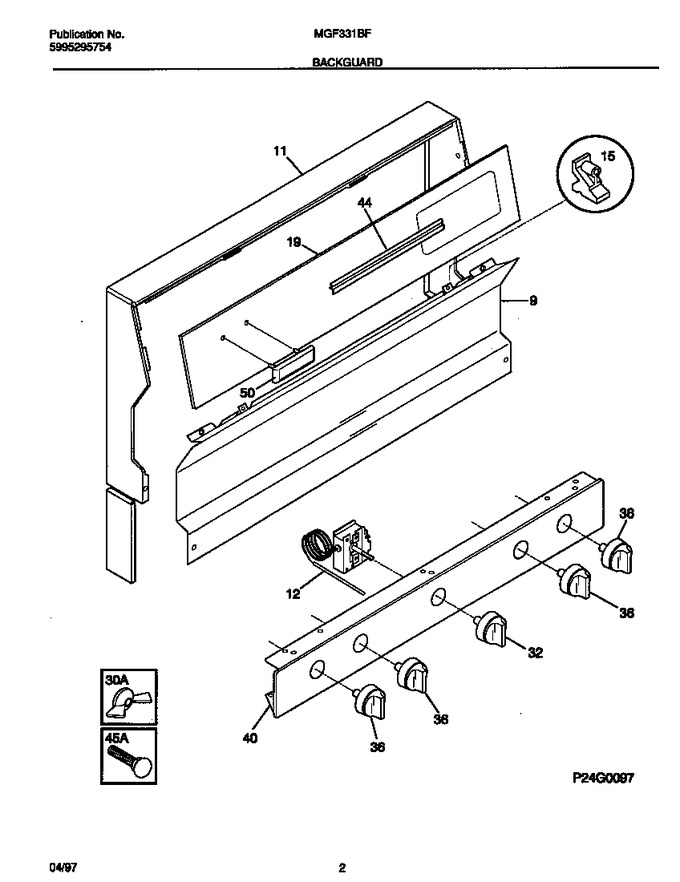

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316043601 | Trim-splasher, White |
|
- | |||||
| 11 | 316057002 | Trim-wrapper |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034107 | Panel, Control, Metal |
|
- | |||||
| 30 | 316064300 | Nut,nylon |
|
- | |||||
| 32 | 316102300 | Knob, Thermostat (Replaces: 316009107) |
|
$ 65.22 | |||||
| 36 | 316009010 | Knob, Top Valve, (4) |
|
$ 60.43 | |||||
| 40 | 316086815 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 45 | 316056902 | Bolt-fastener, Nylon |
|
- | |||||
| 50 | 316096900 | Bezel,nameplate ,black |
|
$ 15.38 | |||||
| *67840 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *67841 | 316519700 | Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *67842 | 5304527841 | Switch-rocker, Oven Light, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 |
