SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer

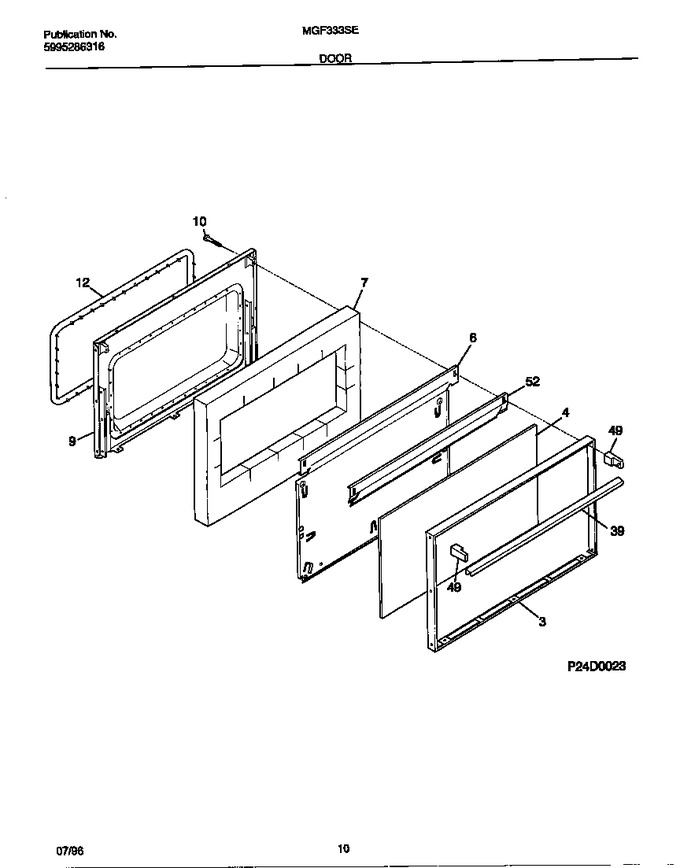

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*07367	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*07368	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*07369	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*07370	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46

    View Diagram in Separate Window       Print Part List
