SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

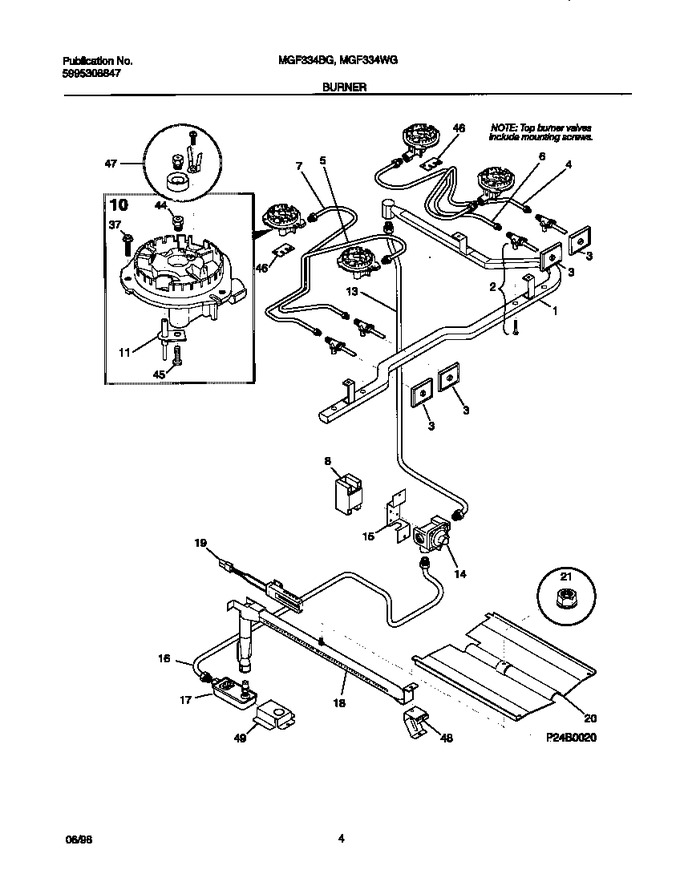

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066201		Manifold Pipe				$ 65.47
2	5303935130		Valve-top Burner				$ 155.93
3	316103600		Switch-ignitor,(4)		Appelez-nous	-
4	316059612		Tube-burner, Red, Rf				$ 88.25
5	316059613		Tube-burner, Green, Lf				$ 87.16
6	316059614		Tube-burner, Nat., Rr				$ 125.06
7	316059615		Tube-burner, Black, Lr				$ 106.32
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	5303935025		Burner Assy-top,sealed ,small ,9000 Btu		Appelez-nous	-
11	316011200		Ignitor,top Burner ,(4) ,w/mtg Bracket			Immediately	$ 38.68
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket-regulator				$ 73.56
16	316065006		Tube-valve To Rgltr, 3/8				$ 122.09
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Ignitor-oven			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
44	5303210090		Orifice-top Burner, Small				$ 54.18
45	316011100		Screw-ignitor Mtg, Self-tapping, M3 X 5.8				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
50	5303935026		Burner-top, Small, Includes 37		Appelez-nous	-
*01805	316048200		Screw-top Valve Mtg,hex Washer Head ,1/4-20 X 0.31,w/gas		Appelez-nous	-
*01806	5303289034		Harness-wiring, Module/igniter				$ 188.84
*01807	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79

    View Diagram in Separate Window       Print Part List
