01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:

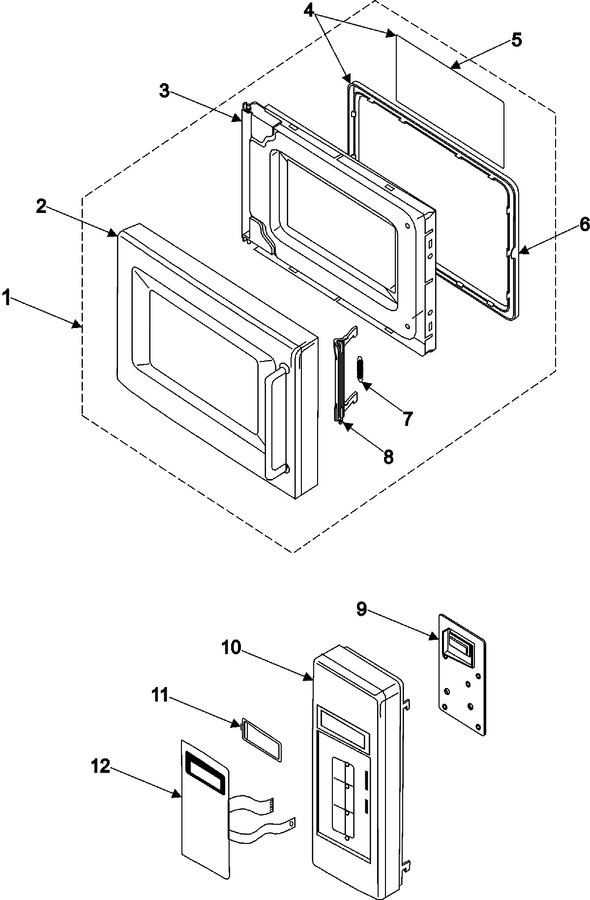

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00530B | Assy Door |
|
- | |||||
| 2 | DE94-00528B | Assy Door-a |
|
- | |||||
| 3 | DE94-00428A | Assy Door-e(coating) |
|
- | |||||
| 4 | DE94-00427A | Assy Door-sub |
|
- | |||||
| 5 | DE64-00248A | Film-door |
|
- | |||||
| 6 | DE64-00184A | Door-c |
|
- | |||||
| 7 | DE61-00193A | Key, Spring |
|
- | |||||
| 8 | DE64-00211A | Door-key |
|
- | |||||
| 9 | YRAN2LED113 | Assy Pcb Parts:mw1255wa,120v60 |
|
- | |||||
| 10 | DE94-00527B | Control Panel Assembly (stl) |
|
- | |||||
| 11 | DE67-40179A | Window-display |
|
- | |||||
| 12 | DE34-00126C | Switch Membrane |
|
- |
