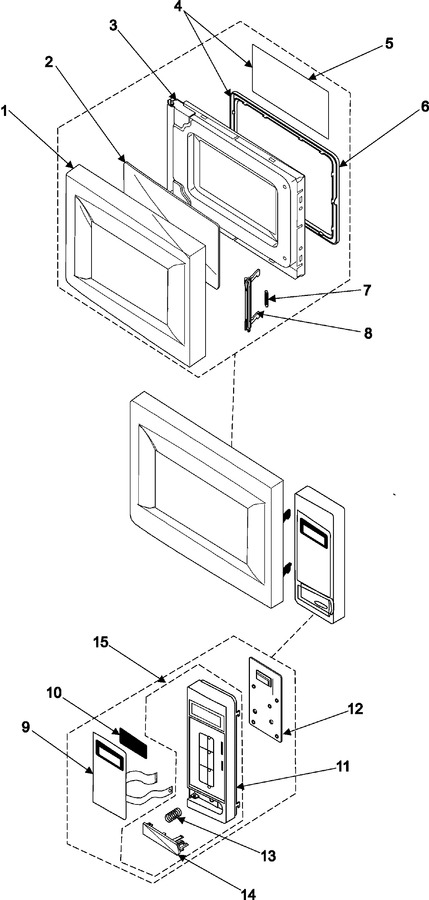

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE64-00186A | Door-a |
|
- | |||||
| 2 | DE63-00042A | Screen-door |
|
- | |||||
| 3 | DE94-00428A | Assy Door-e(coating) |
|
- | |||||
| 4 | DE94-00427A | Assy Door-sub |
|
- | |||||
| 5 | DE64-00248A | Film-door |
|
- | |||||
| 6 | DE64-00184A | Door-c |
|
- | |||||
| 7 | DE61-00193A | Key, Spring |
|
- | |||||
| 8 | DE64-00210A | Door-key |
|
- | |||||
| 9 | DE34-00105E | Switch Membrane |
|
- | |||||
| 10 | DE64-00247A | Window-display |
|
- | |||||
| 11 | DE72-00130A | Control-panel |
|
- | |||||
| 12 | YRAN2LED113 | Assy Pcb Parts:mw1255wa,120v60 |
|
- | |||||
| 13 | DE61-70076A | Spring, Button |
|
$ 20.70 | |||||
| 14 | DE67-00093A | Button-push |
|
- | |||||
| 15 | DE94-00426A | Assy Control-panel |
|
- |
