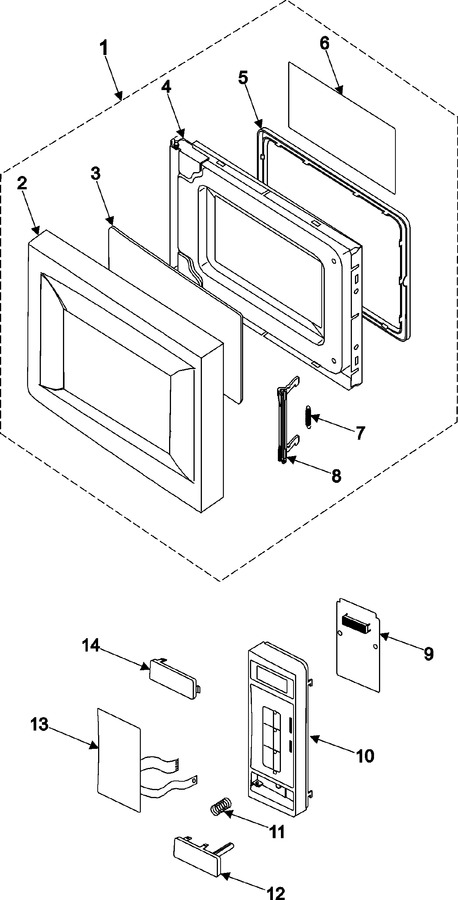

02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | DE64-00190D | Door-a |
|
- | |||||
| 3 | DE63-00040A | Screen-door |
|
- | |||||
| 4 | DE94-00406A | Assy Door-e |
|
- | |||||
| 5 | DE64-00182A | Door-c |
|
- | |||||
| 6 | DE64-00221A | Film-door |
|
- | |||||
| 7 | DE61-00132A | Spring-key |
|
- | |||||
| 8 | DE64-00217A | Door-key |
|
- | |||||
| 9 | RA-22LED-17 | Assy Pcb Parts:mw640wa,120v60h |
|
$ 92.18 | |||||
| 10 | DE72-00125E | Control-panel |
|
- | |||||
| 11 | DE61-70076A | Spring, Button |
|
$ 20.70 | |||||
| 12 | DE67-00094C | Button-push |
|
- | |||||
| 13 | DE34-00106N | Switch Membrane |
|
$ 30.63 | |||||
| 14 | DE64-00201A | Window-display |
|
- |
