SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly

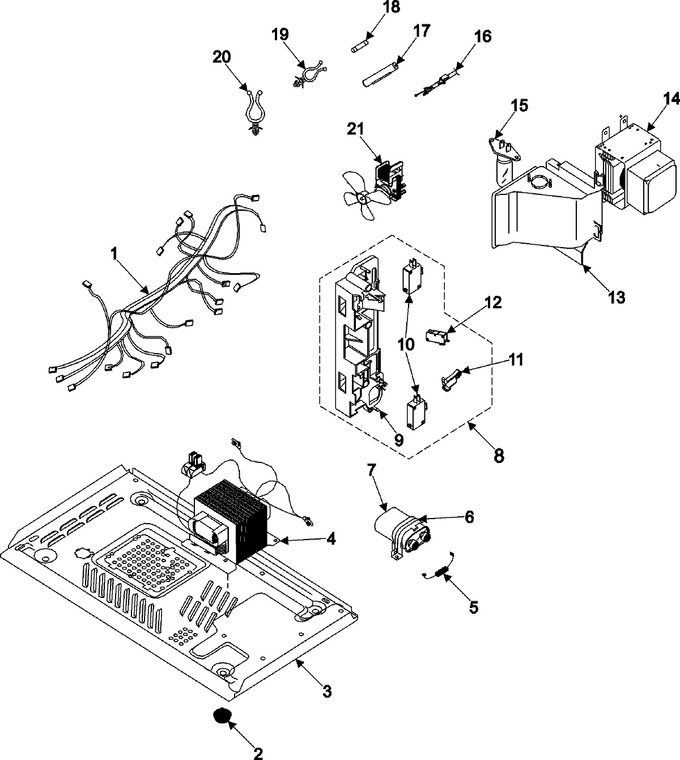

03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-00270A | Wire Harness-a |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | DE80-00022A | Base-plate |
|
- | |||||
| 4 | DE26-00055A | Trans-h.v |
|
- | |||||
| 5 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 6 | DE61-00139A | Bracket-hvc |
|
- | |||||
| 7 | 2501-001201 | C-oil |
|
- | |||||
| 8 | DE96-00091A | Assy Body Latch |
|
- | |||||
| 9 | DE72-00139A | Body-latch(d) |
|
- | |||||
| 10 | 3405-000178 | Switch-micro |
|
$ 8.17 | |||||
| 11 | DE66-00088A | Lever-switch |
|
- | |||||
| 12 | 555555 | Switch-micro (Replaces: 3405-000176) |
|
$ 151.94 | |||||
| 13 | DE71-00145A | Cover-air |
|
- | |||||
| 14 | YOM52S31ESM | Assy-magnetron |
|
- | |||||
| 15 | 4713-001150 | Lamp-incandescent |
|
- | |||||
| 16 | DE39-20146A | Assy Power Cord |
|
- | |||||
| 17 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 18 | 3601-001197 | Fuse-cartridge |
|
$ 18.00 | |||||
| 19 | 6046-000310 | Stand Off |
|
- | |||||
| 20 | 6502-001056 | Cable Clamp |
|
- | |||||
| 21 | DE96-00086B | Assy-motor Fan |
|
$ 52.70 |
