SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

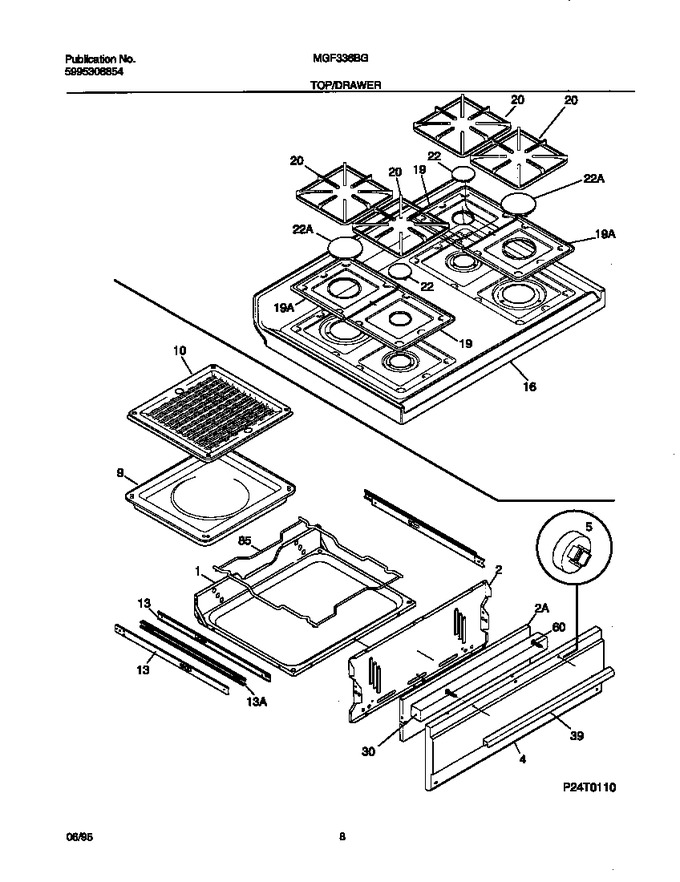

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110401		Carriage,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
19	316011415		Pan-burner, Black, Small, (2)				$ 53.60
19	316011419		Pan-burner, Black, Large, (2)				$ 102.90
20	316085201		Grate, (4)		Appelez-nous	-
22	316098505		Cap-burner,black ,large				$ 56.28
22	316098501		Cap-burner,black ,(2)		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019506		Handle-drawer, White		Appelez-nous	-
85	316110500		Rack,warmer Drawer		Appelez-nous	-
*34297	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*34298	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*34299	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*34300	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*34302	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*34303	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
10A	5303131356		Insert-broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96

    View Diagram in Separate Window       Print Part List
