SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

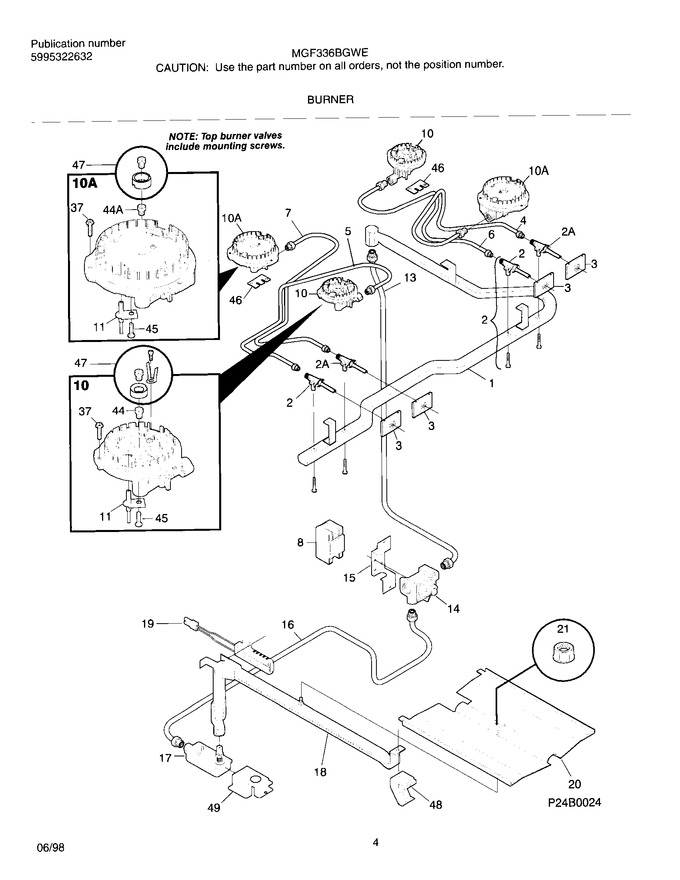

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316113801		Manifold-pipe		Appelez-nous	-
2	5303935130		Valve-top Burner				$ 155.93
3	316103600		Switch-ignitor		Appelez-nous	-
4	316059612		Tube-burner, Red, Rf				$ 88.25
5	316059613		Tube-burner, Green, Lf				$ 87.16
6	316059614		Tube-burner, Nat., Rr				$ 125.06
7	316059615		Tube-burner, Black, Lr				$ 106.32
8	5303289034		Harness-wiring, Module/igniter				$ 188.84
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	5303935025		Burner Assy-top,sealed ,small ,9000 Btu		Appelez-nous	-
11	316011200		Ignitor-top Burner, W/mtg Bracket			Immediately	$ 38.68
13	316065005		Tube, Aluminum, Rgltr To Manf, W/fittings				$ 91.51
14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
14	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79
15	316091600		Bracket-regulator				$ 73.56
16	316065006		Tube-valve To Rgltr, 3/8				$ 122.09
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Ignitor-oven			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316069301		Screw,burner Mtg				$ 2.99
44	5303210090		Orifice-top Burner, Small				$ 54.18
45	316011100		Screw-ignitor Mtg, Self-tapping, M3 X 5.8				$ 3.41
46	316074700		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
10A	5303935075		Burner Assy-top,sealed,large-11,100 Btu,incl.11,37,44,45		Appelez-nous	-
2A	5303935132		Valve-top Burner, Large		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
