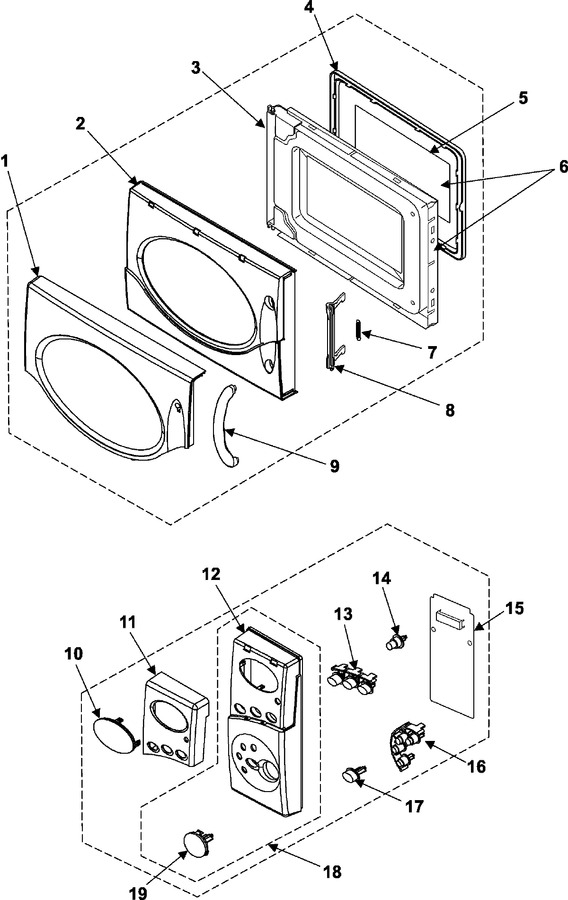

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE71-00161C | Cover-door |
|
- | |||||
| 2 | DE64-00226A | Door-a |
|
- | |||||
| 3 | DE94-00351B | Assy Door-e(coating) |
|
- | |||||
| 4 | DE64-40008B | Door-c |
|
- | |||||
| 5 | DE64-00221B | Film-door |
|
- | |||||
| 6 | DE94-00459A | Assy Door-sub |
|
- | |||||
| 7 | DE61-00198A | Spring-key |
|
- | |||||
| 8 | DE64-00210A | Door-key |
|
- | |||||
| 9 | DE64-00227A | Handle-door |
|
- | |||||
| 10 | DE64-00229A | Window-display |
|
- | |||||
| 11 | DE71-00160D | Cover-panel |
|
- | |||||
| 12 | DE72-00149Q | Control-panel |
|
- | |||||
| 13 | DE64-00230A | Button-select(a) |
|
- | |||||
| 14 | DE64-00232A | Button-select(c) |
|
- | |||||
| 15 | RA-MW880-00 | Assy Pcb Parts:mw880,120v60hz |
|
- | |||||
| 16 | DE64-00231A | Button-select(b) |
|
- | |||||
| 17 | DE64-00233C | Button-cancel |
|
- | |||||
| 18 | Y00000000 | See Note Assy Control Panel Currently Unavailable |
|
- | |||||
| 19 | DE64-00228E | Button-start |
|
- |
