SELECT A DIAGRAM
01 - Body/cavity/elements

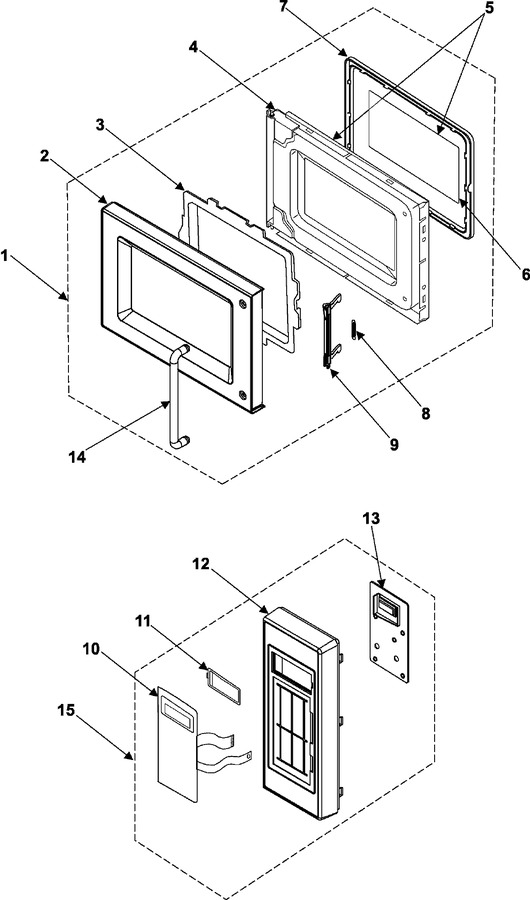

02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Assy Door Currently Unavailable |
|
- | |||||
| 2 | DE64-00625B | Door-a |
|
- | |||||
| 3 | DE67-20196A | Screen-door |
|
- | |||||
| 4 | DE94-00351B | Assy Door-e(coating) |
|
- | |||||
| 5 | DE94-00459A | Assy Door-sub |
|
- | |||||
| 6 | DE64-00221B | Film-door |
|
- | |||||
| 7 | DE64-40008B | Door-c |
|
- | |||||
| 8 | DE61-00198A | Spring-key |
|
- | |||||
| 9 | DE64-00211A | Door-key |
|
- | |||||
| 10 | DE34-00170B | Switch Membrane |
|
- | |||||
| 11 | DE67-40179A | Window-display |
|
- | |||||
| 12 | DE64-00626B | Control-panel |
|
- | |||||
| 13 | YRAS22LED53 | Assy Pcb Parts:mw830wa(otp),12 |
|
- | |||||
| 14 | DE64-00629A | Handle-door |
|
- | |||||
| 15 | DE94-00840B | Control Panel Assy |
|
- |
