SELECT A DIAGRAM
01 - Body/cavity/elements

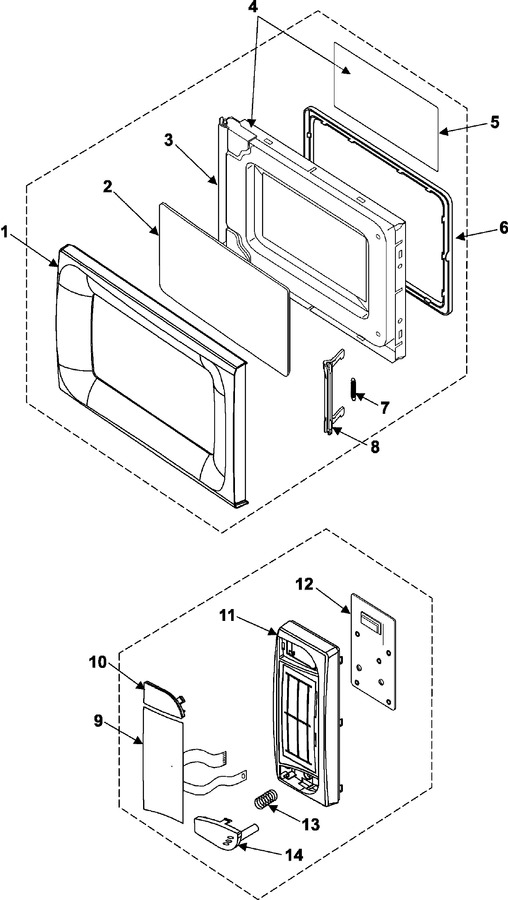

02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE64-00555B | Door-a |
|
- | |||||
| 2 | DE67-20197C | Screen-door |
|
- | |||||
| 3 | DE94-00075B | Assy Door-e |
|
- | |||||
| 4 | DE94-00073B | Assy Door-sub |
|
- | |||||
| 5 | DE01-00118A | Film-door |
|
- | |||||
| 6 | DE64-40012A | Door-c |
|
- | |||||
| 7 | DE61-70128A | Key, Spring |
|
$ 16.82 | |||||
| 8 | DE64-40006F | Key, Door |
|
$ 20.70 | |||||
| 9 | DE34-00142B | Switch Membrane |
|
- | |||||
| 10 | DE64-00552A | Window-display |
|
- | |||||
| 11 | DE64-00553B | Control-panel |
|
- | |||||
| 12 | YRAN2LED138 | Assy Pcb Parts |
|
- | |||||
| 13 | DE61-70076A | Spring, Button |
|
$ 20.70 | |||||
| 14 | DE64-00551B | Button-push |
|
- |
