SELECT A DIAGRAM

01 - Cover

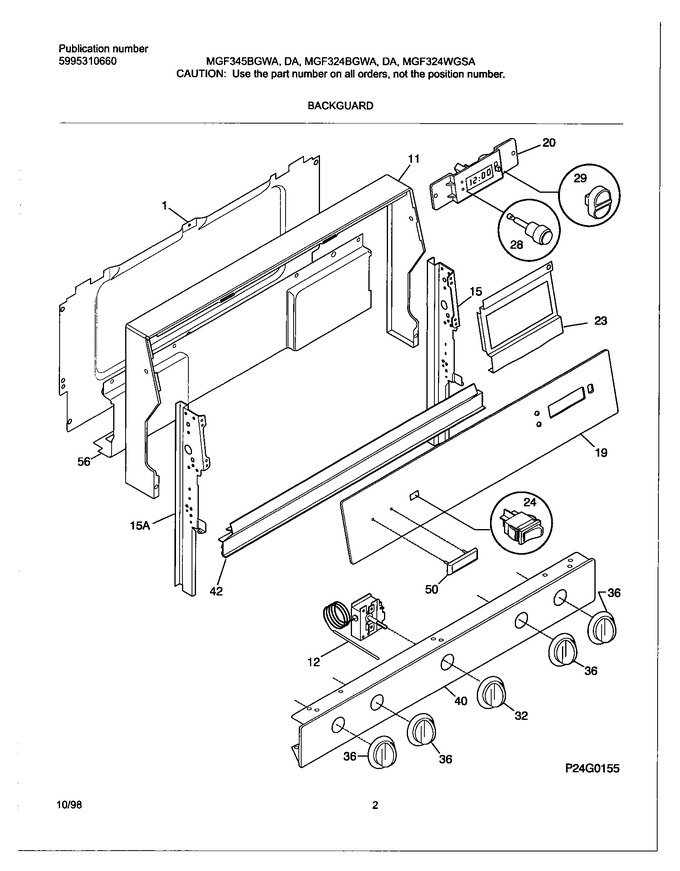

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061856		Trim-wrapper,black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316082652		Panel-control,metal ,19		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316053602		Knob-thermostat,black		Appelez-nous	-
36	316109507		Knob,top Valve ,black ,(4)				$ 82.43
40	316062325		Panel, Manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
56	316074907		Deflector-flue, Black		Appelez-nous	-
*11520	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*11521	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
