SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner

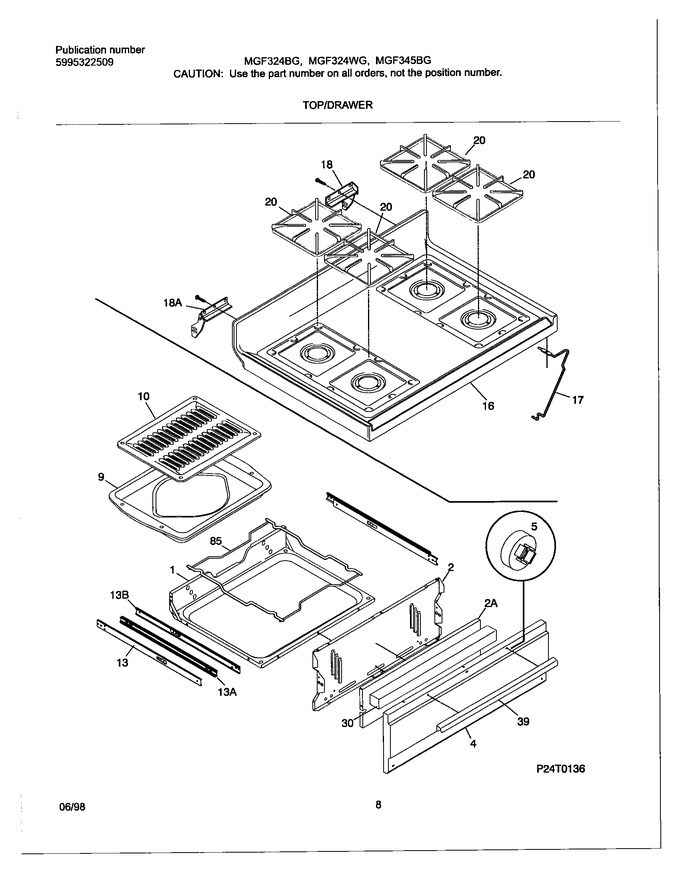

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
16	5303285572		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
85	316110500		Rack,low Broil		Appelez-nous	-
13A	316111600		Glide-drawer,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
2A	316110800		Shield,broiler		Appelez-nous	-
F20	316088900		Grate, Black, (4)		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
NI	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
